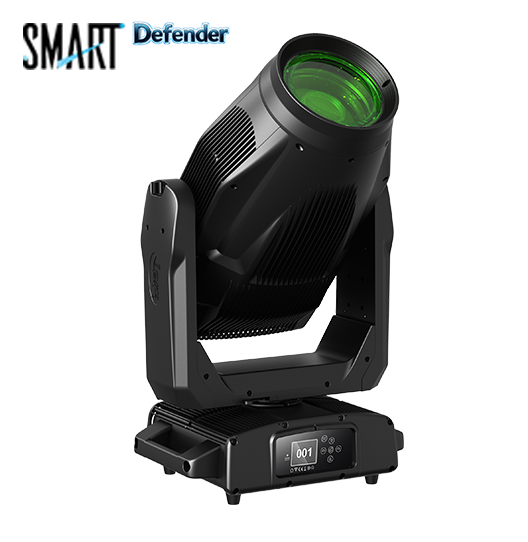

SL1000P IP

  • Specification
Optical system
Source: 1000W White LED
Fixture CT: 6800K
Lamp life expectancy:20,000h
CRI: ≥70  (SL1000PH IP: up to 95)
Fixture output: 50,000lm

Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning

Color system
CMY+CTO color mixing
1 Color wheel: 6 dichroic filters + open

Gobo system
1 Rotating gobo wheel:6 interchangeable gobos + open. Gobo OD: 30mm
1 Static gobo wheel:7 gobos + open
1 Animation wheel

Motorized focus
Zoom range: 7°-54°
Auto focus
2 Rotating prisms: 4 linear + 4 facet
Frost: light frost, heavy frost
4 individually positionable blades with ±45°rotation of the complete framing system
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse

Protection rating

Battery operated for fast addressing, 15 seconds standby auto lock
Pan/tilt disengage (hold Left arrow and Right arrow buttons)

Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 39/37/60CH

Input signal isolation
Auto thermal protection circuit
RDM protocol

Electric parameter
AC220-240V, 50/60Hz
Power: 1350W

Dimension and weight
Product dimension: 45.7x33.2x82.5cm
Packing dimension (carton): 57.0x46.5x94.5cm
Net weight: 52.5kgs
Gross weight (carton): 58.5kgs

Errors and omissions are possible.  All specifications are subject for change without prior notice.

  • Dimensions

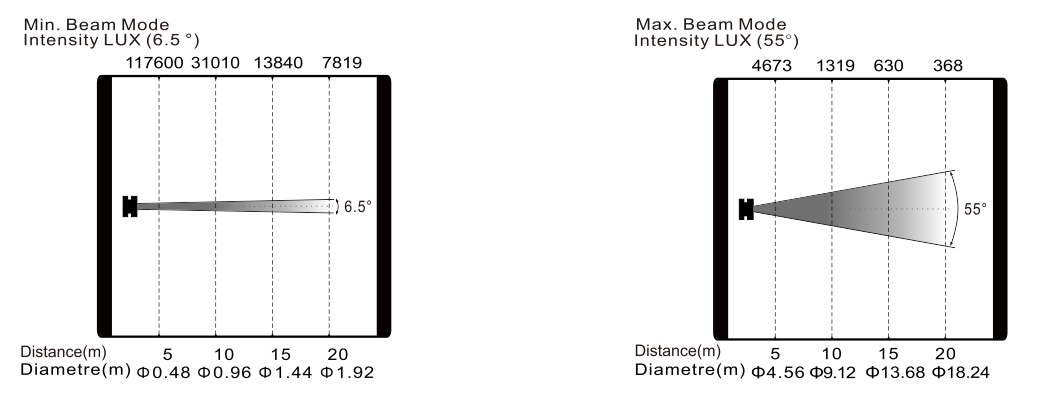

  • Photometrics
  • Colours/ Gobos
  • Related materials and tools to download
  • Library
    SL1000P IP(grandMA2) RAR 0.02MB
    SL1000P IP(Avolites D4) RAR 0.18MB
    SL1000P IP(grandMA3 GDTF) RAR 1.11MB
  • CAD Drawing
    SL1000P IP_Dimensional Drawings.dwg 2D file DWG 4.48MB
    SL1000P IP_CAD Symbol 3D.dwg 3D FILE DWG 0.77MB
