LPAR7QZ
- Specification
Optical system
Source: 7x40W RGBW LED
Fixture CT: 8200K
Lamp life expectancy：50,000h
Fixture output: 2,600lm
Color system
RGBW color mixing
Color temperature linear: 2700K to 8000K,Color temperature presets: 2700K, 3200K, 4300K, 5600K, 6500K, 8000K
Effects
Zoom range: 12°-59°
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Ring control（optional pixel control)
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different visual linearity requirements
Refresh rate: 900Hz-24,000Hz
Protection rating
IP20
Display
Fast addressing,15 seconds standby auto lock
Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
4 Control channel modes: 5/8/16/21CH
Control
RDM protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 290W
Dimension and weight
Product dimension: 279x239.9x323.7mm
Packing dimension (carton): 435x370x365mm
Net weight: 6.8kg
Gross weight (carton): 9.5kg
Others
Accessories: gelframe, barndoor
Source: 7x40W RGBW LED
Fixture CT: 8200K
Lamp life expectancy：50,000h
Fixture output: 2,600lm
Color system
RGBW color mixing
Color temperature linear: 2700K to 8000K,Color temperature presets: 2700K, 3200K, 4300K, 5600K, 6500K, 8000K
Effects
Zoom range: 12°-59°
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Ring control（optional pixel control)
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different visual linearity requirements
Refresh rate: 900Hz-24,000Hz
Protection rating
IP20
Display
Fast addressing,15 seconds standby auto lock
Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
4 Control channel modes: 5/8/16/21CH
Control
RDM protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 290W
Dimension and weight
Product dimension: 279x239.9x323.7mm
Packing dimension (carton): 435x370x365mm
Net weight: 6.8kg
Gross weight (carton): 9.5kg
Others
Accessories: gelframe, barndoor
Errors and omissions are possible. All specifications are subject for change without prior notice.

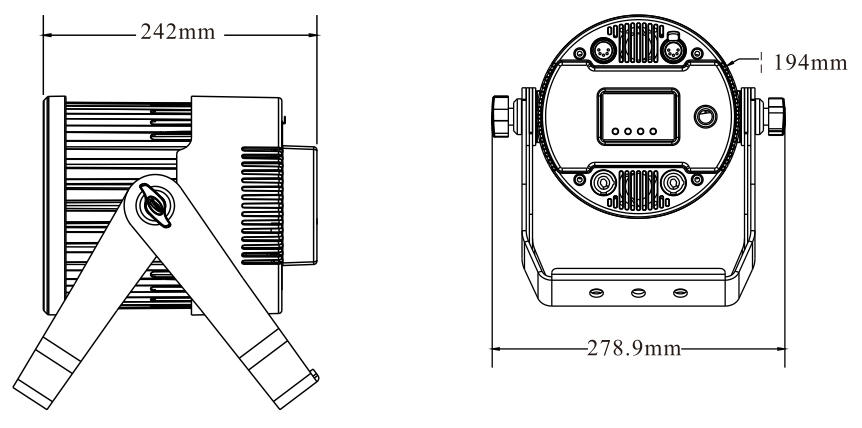

- Dimensions
- Photometrics
- Accessories
- Video
- Related materials and tools to download
-
Library LPAR7QZ(grandMA3 GDTF)（Please contact Tokyo Butai Showmei for Japanese version） RAR 0.15MB LPAR7QZ(grandMA2)（Please contact Tokyo Butai Showmei for Japanese version） RAR 0.01MB LPAR7QZ(grandMA1)（Please contact Tokyo Butai Showmei for Japanese version） RAR 0.01MB LPAR7QZ(Compulite Vector series)（Please contact Tokyo Butai Showmei for Japanese version） RAR 0.24MB LPAR7QZ(Avolites D4)（Please contact Tokyo Butai Showmei for Japanese version） RAR 0.03MB LPAR7QZ(Avolites R20)（Please contact Tokyo Butai Showmei for Japanese version） RAR 0.01MB
-
CAD Drawing LPAR7QZ_Dimensional Drawings.dwg 2D file DWG 1.57MB
