V1500T-ER
- Specification
OPTICS
Lamp: Philips MSR GOLD 1510 SA/DE
CT:6000 K, Life: 750H
MOVEMENT
Pan movement: 540°/630°optional (16 bit )
Tilt movement: 270°(16 bit )
Advanced moving system: fast, stable and quiet, auto X-Y repositioning
COLORS
CMY color mixing and speed can be adjustable
CTO color temperature linear change from 2700 -6500K
1 Color wheel: 8 dichroic filters +open, rainbow effect
30 CMY+CTO+Color macros and random CMY
“Slot in&out” color wheel system
GOBOS
2 Rotating gobo wheels: each has 6 interchangeable, rotating, indexable,gobos+open
“Slot in&out” gobo wheel system
FEATURES
3 Control channel modes: 26/24/38 channels

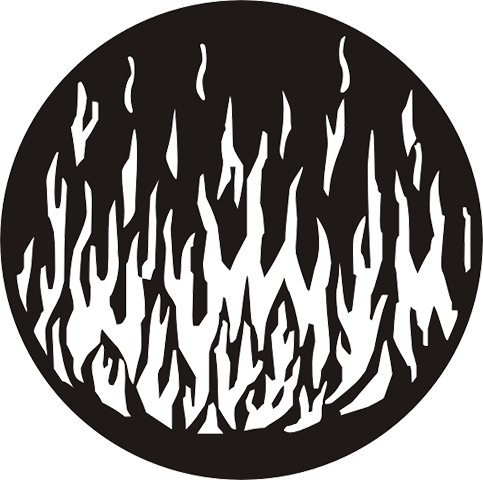

Animation wheel: can make special dynamic flame or water effect
Rotating prism: 3 facets and 3D prism
Focus: motorized focus
Shutter: Variable from 1-25 flashes or random strobe
Dimmer: 0-100% full range dimming
Iris: motorized linear change from 5%-100%
Frost: extremly nice wash effect
Zoom: 16°-42° linear zoom
DISPLAY
Advanced and convenient full-color LCD touch screen, with rechargeable battery
Locked automatically after standby for 15 seconds to prevent error; hold the button for 3 seconds to activate
Friendly reset detection: hold MENU and ENTER button to lock pan/tilt reset, able to complete reset detection inside flight case
SOFTWARE
7 pre-installed programs available upon selection
Upgrades: fast and convenient through DMX cable
Reset DMX address, remote lamp switch, reset, sound control can all be done by the console
Running time of lamp and fixture on display for reference
OTHER SPEC
Input signal isolation: guarantees stable signal transmission without interference
Auto-protection at high temperature: lamp automatically switches off when reaching high tempreture until the fixture cools down
Build in wireless receiver
POWER
AC100-240V, 50/60HZ
DIMENSIONS AND WEIGHT
Packing Dimension:75x45x54cm
Net Weight: 34kgs
Gross Weight: 39kgs
Lamp: Philips MSR GOLD 1510 SA/DE
CT:6000 K, Life: 750H
MOVEMENT
Pan movement: 540°/630°optional (16 bit )
Tilt movement: 270°(16 bit )
Advanced moving system: fast, stable and quiet, auto X-Y repositioning
COLORS
CMY color mixing and speed can be adjustable
CTO color temperature linear change from 2700 -6500K
1 Color wheel: 8 dichroic filters +open, rainbow effect
30 CMY+CTO+Color macros and random CMY
“Slot in&out” color wheel system
GOBOS
2 Rotating gobo wheels: each has 6 interchangeable, rotating, indexable,gobos+open
“Slot in&out” gobo wheel system
FEATURES
3 Control channel modes: 26/24/38 channels
Animation wheel: can make special dynamic flame or water effect
Rotating prism: 3 facets and 3D prism
Focus: motorized focus
Shutter: Variable from 1-25 flashes or random strobe
Dimmer: 0-100% full range dimming
Iris: motorized linear change from 5%-100%
Frost: extremly nice wash effect
Zoom: 16°-42° linear zoom
DISPLAY
Advanced and convenient full-color LCD touch screen, with rechargeable battery
Locked automatically after standby for 15 seconds to prevent error; hold the button for 3 seconds to activate
Friendly reset detection: hold MENU and ENTER button to lock pan/tilt reset, able to complete reset detection inside flight case
SOFTWARE
7 pre-installed programs available upon selection
Upgrades: fast and convenient through DMX cable
Reset DMX address, remote lamp switch, reset, sound control can all be done by the console
Running time of lamp and fixture on display for reference
OTHER SPEC
Input signal isolation: guarantees stable signal transmission without interference
Auto-protection at high temperature: lamp automatically switches off when reaching high tempreture until the fixture cools down
Build in wireless receiver
POWER
AC100-240V, 50/60HZ
DIMENSIONS AND WEIGHT
Packing Dimension:75x45x54cm
Net Weight: 34kgs
Gross Weight: 39kgs
Errors and omissions are possible. All specifications are subject for change without prior notice.
- Related materials and tools to download
-
CAD Drawing V1500T-ER_CAD Symbol 3D.DWG 3D FILE DWG 0.82MB
