GLW740
- Specification
Optical system
Source: 7x40W RGBL LED, optional RGBW
Light source life expectancy:50,000 hours Average Light Source Life*
Fixture output: 5000lm(RGBW)
Movement
Pan: 540°/630°optional(16 bit)
Tilt: 250°(16 bit)
Auto X/Y repositioning
Color system
RGBL color mixing, optional RGBW
Color temperature linear: 2300K to 7000K,Color temperature presets: 2300K,2500K,2600K,2900K,3000K,3050K,3200K,3400K,3600K,4000K,5000K,6000K,7000K
Built-in LEE & ROSCO colored paper
Zoom range: 3.5°-38°
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Pixel control
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different visual linearity requirements
Refresh rate: 1000-25,000Hz
Protection rating
IP20
Display
Battery operated for fast addressing,15 seconds standby auto lock Pan/ tilt disengage (hold Left and Right buttons)
Pan/tilt disengage (hold left and right arrow buttons)
Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
3 Control channel Modes: 24/12/51CH
Control
Optional Installed wireless receiver
Art-Net control
Kling-Net protocol
RDM protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 400W
Dimension and weight
Product dimension: 282x200x345mm
Packing dimension (carton): 430x360x295mm
Net weight: 6 kg
Gross weight (carton): 9 kg
*Testing conditions in the lab may differ based on various factors.
Source: 7x40W RGBL LED, optional RGBW
Light source life expectancy:50,000 hours Average Light Source Life*
Fixture output: 5000lm(RGBW)
Movement
Pan: 540°/630°optional(16 bit)
Tilt: 250°(16 bit)
Auto X/Y repositioning
Color system
RGBL color mixing, optional RGBW
Color temperature linear: 2300K to 7000K,Color temperature presets: 2300K,2500K,2600K,2900K,3000K,3050K,3200K,3400K,3600K,4000K,5000K,6000K,7000K
Built-in LEE & ROSCO colored paper
Built-in multiple effects macros
Zoom range: 3.5°-38°
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Pixel control
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different visual linearity requirements
Refresh rate: 1000-25,000Hz
Protection rating
IP20
Display
Battery operated for fast addressing,15 seconds standby auto lock Pan/ tilt disengage (hold Left and Right buttons)
Pan/tilt disengage (hold left and right arrow buttons)
Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
3 Control channel Modes: 24/12/51CH
Control
Optional Installed wireless receiver
Art-Net control
Kling-Net protocol
RDM protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 400W
Dimension and weight
Product dimension: 282x200x345mm
Packing dimension (carton): 430x360x295mm
Net weight: 6 kg
Gross weight (carton): 9 kg
*Testing conditions in the lab may differ based on various factors.
Errors and omissions are possible. All specifications are subject for change without prior notice.
- Dimensions

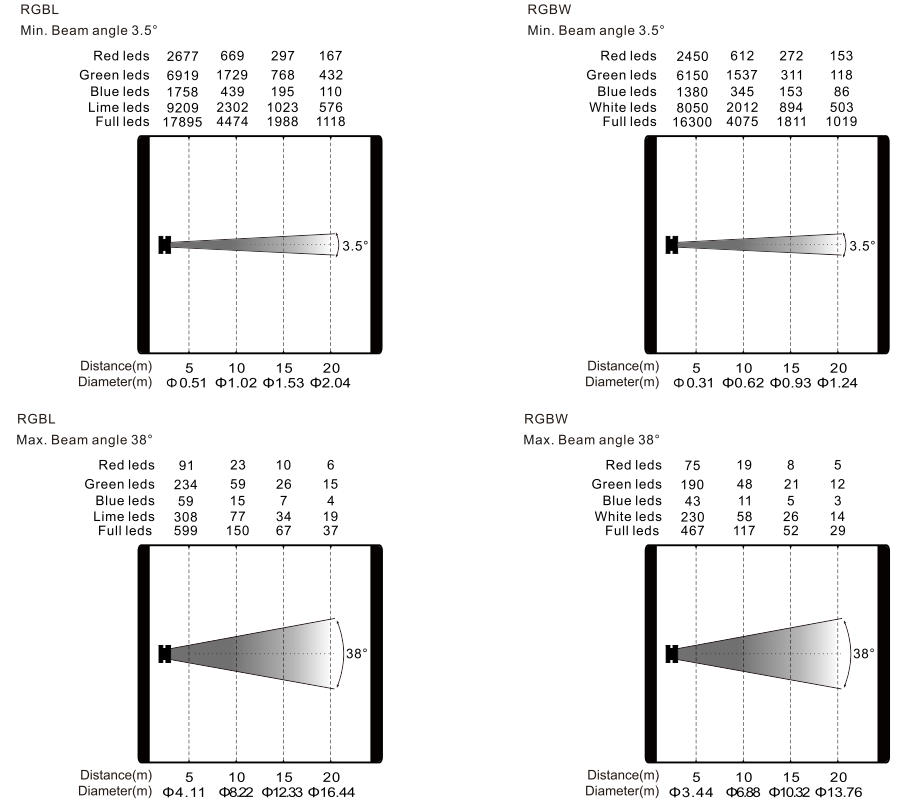

- Photometrics
