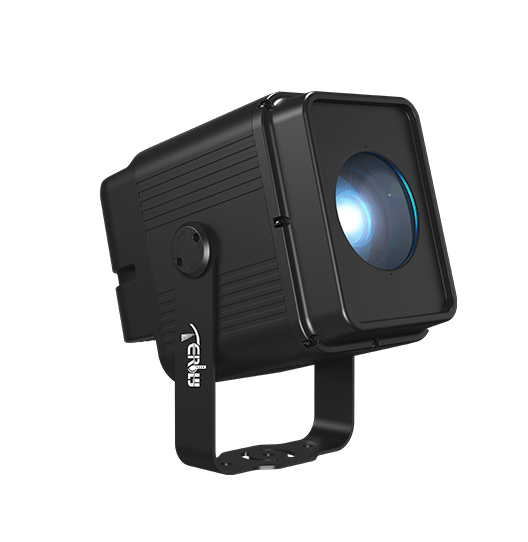

MAX 02
- Specification
Optical system
Source: 290W White LED
Fixture CT: 6500±500K
LED life expectancy:20,000h
CRI: ≥70 (Optional High CRI Version Ra≥90)
Fixture Output: 10,000lm

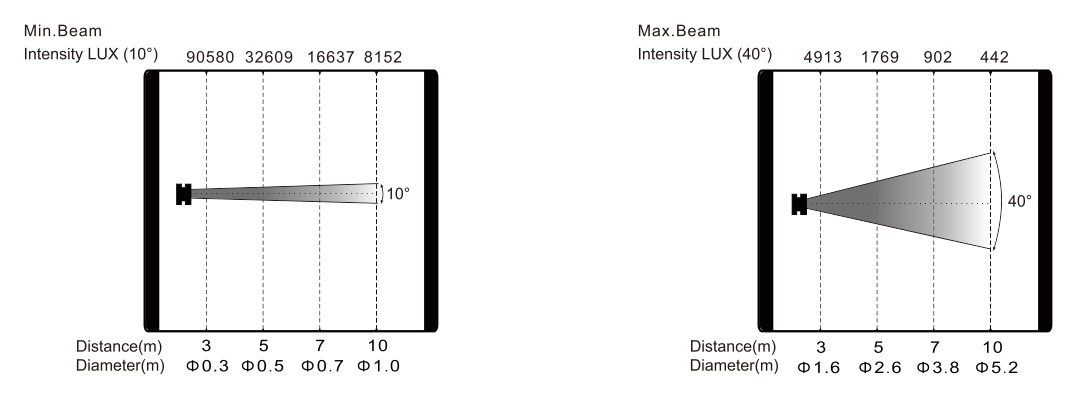

Zoom range: 10°-40°
Color system
1 Color wheel (7filters + open)
Gobo system
1 Rotating Gobo Wheel (7 gobos + open)
Effects
Dimming: 0-100% linear dimming
1 Effect Wheel with Corrugated Glass
Protection rating
IP66
Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Control Mode: DMX512/ Manual
Run time of fixture
2 Control channel modes:10/15CH
Control
DMX
RDM Protocol
Electric parameter
AC100-240V, 50/60Hz
Power consumption: 300W
Dimension and weight
Product dimension: 376.2x242x387.5mm
Packing dimension (carton): 510x285x350mm
Net weight: 10.8 kg
Gross weight (carton): 11.4 kg
Source: 290W White LED
Fixture CT: 6500±500K
LED life expectancy:20,000h
CRI: ≥70 (Optional High CRI Version Ra≥90)
Fixture Output: 10,000lm
Zoom range: 10°-40°
Color system
1 Color wheel (7filters + open)
Gobo system
1 Rotating Gobo Wheel (7 gobos + open)
Effects
Dimming: 0-100% linear dimming
1 Effect Wheel with Corrugated Glass
Protection rating
IP66
Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Control Mode: DMX512/ Manual
Run time of fixture
2 Control channel modes:10/15CH
Control
DMX
RDM Protocol
Electric parameter
AC100-240V, 50/60Hz
Power consumption: 300W
Dimension and weight
Product dimension: 376.2x242x387.5mm
Packing dimension (carton): 510x285x350mm
Net weight: 10.8 kg
Gross weight (carton): 11.4 kg
Errors and omissions are possible. All specifications are subject for change without prior notice.
