Optical system
Source: Philips MSD Platinum 19 R LL, 420W
Fixture CT：7400K
Lamp life expectancy：5000 hrs

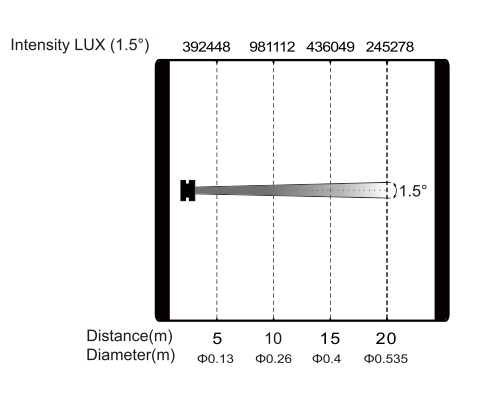

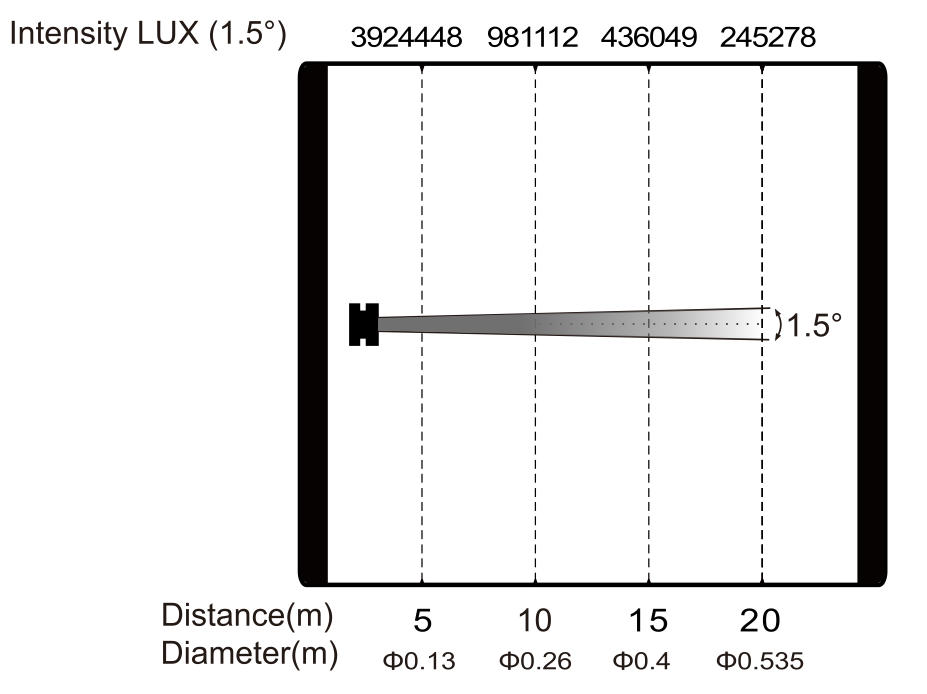

Illuminance: 280000 lux @ 20 m

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto pan/ tilt repositioning

Color system
CMY color mixing
1 color wheel：14 dichroic filters + open , indexable, split color effect, rainbow effect

Gobo system
1 Static gobo wheel:15 gobos + open

Effect
Motorized focus
Beam angle: 1.6º
2 Rotating prism: 4-facet linear prism + 8-facet circular prism, indexable, rotating in both directions
Frost system
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse

Protection rating
IP20

Display
Display:  optional with rechargeable battery, locked automatically after standby for 15 seconds
Pan/tilt disengage (hold Left and Right arrow buttons), support to complete the reset detection in the flight case

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 20/29 CH

Control
Input signal isolation
Auto thermal protection
RDM protocol

Electric parameter
AC200-240V,  50/60Hz
Power consumption: 600W

Dimension and weight

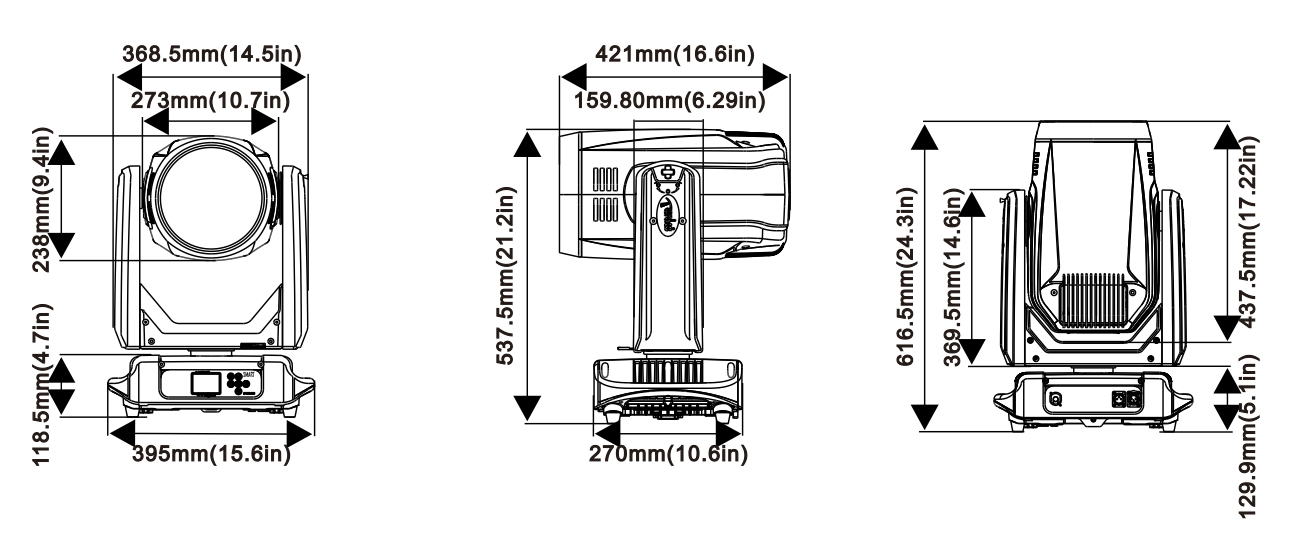

Product dimension: 395x270x616.5mm
Packing dimension (carton): 730x475x385mm
Net weight: 19.6kg
Gross weight (carton): 23.8kg
