GLW3720Z
- Specification
Optical system
Source: 37 x 20W RGBW LED
Fixture CT: 6340K
Lamp life expectancy:50,000h
CRI: ≥75
Fixture output: 8,100lm
Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning
Color system
RGBW color mixing
Color temperature presets: 2700K, 3200K, 4300K, 5600K, 6500K, 8000K
Effects
Zoom range: 7°-53°
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different visual linearity requirements
Refresh rate: 900Hz-25,000Hz
Pixel Control
Protection rating
IP20
Display
Battery operated for fast addressing,15 seconds standby auto lock
Pan/tilt disengage (hold MENU and ENTER button)
Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 17/19/165CH
Control
Input signal isolation
Optional installed wireless receiver
Art-Net control
RDM protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 600W
Dimension and weight
Product dimension: 49.9x33.1x60.3cm
Packing dimension (carton): 71.5x62.5x47.0cm
Net weight: 22.5kgs
Gross weight (carton): 28.5kgs
Source: 37 x 20W RGBW LED
Fixture CT: 6340K
Lamp life expectancy:50,000h
CRI: ≥75
Fixture output: 8,100lm
Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning
Color system
RGBW color mixing
Color temperature presets: 2700K, 3200K, 4300K, 5600K, 6500K, 8000K
Effects
Zoom range: 7°-53°
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different visual linearity requirements
Refresh rate: 900Hz-25,000Hz
Pixel Control
Protection rating
IP20
Display
Battery operated for fast addressing,15 seconds standby auto lock
Pan/tilt disengage (hold MENU and ENTER button)
Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 17/19/165CH
Control
Input signal isolation
Optional installed wireless receiver
Art-Net control
RDM protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 600W
Dimension and weight
Product dimension: 49.9x33.1x60.3cm
Packing dimension (carton): 71.5x62.5x47.0cm
Net weight: 22.5kgs
Gross weight (carton): 28.5kgs
Errors and omissions are possible. All specifications are subject for change without prior notice.
- Dimensions

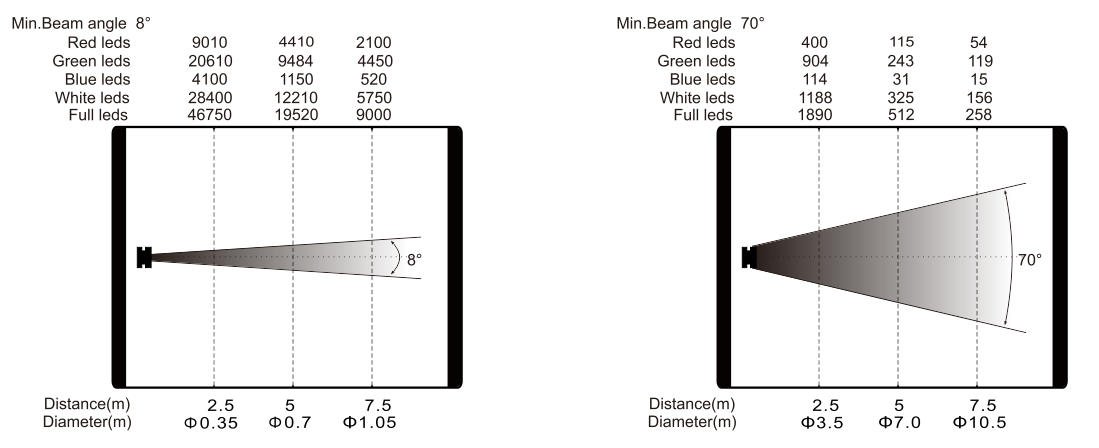

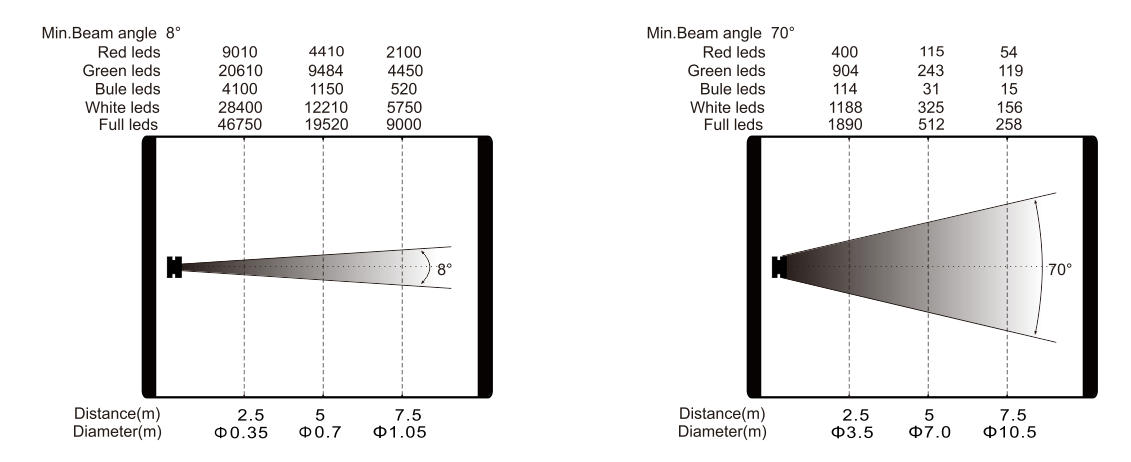

- Photometrics
