SL5000PH

  • Specification
Optical system
Source: 1400W White LED
Fixture CT: 6500K
LED life expectancy:20,000h
CRI: Ra: up to 95,R9: up to 95
Fixture output: 45,000lm

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning

Color system
CMY+CTO color mixing
1 Color wheel: 6 dichroic filters + open

Gobo system
1 Rotating gobo wheel:6 interchangeable gobos + open. Gobo OD: 36mm
1 Static gobo wheel:7 interchangeable gobos + open
1 Animation wheel

Effects
Motorized focus
Zoom range: 5.5°-50°
Auto focus
2 Rotating prisms: 4 linear + 4 facet
Frost: light frost, heavy frost
4 individually positionable blades with ±90°rotation of the complete framing system
Iris
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse

Protection rating
IP20

Display
Pan/tilt disengage (hold Left arrow and Right arrow buttons)

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 40/38/62CH

Control
Input signal isolation
Auto thermal protection circuit
Optional installed wireless receiver
RDM protocol

Electric parameter
AC220-240V, 50/60Hz
Power: 1700W

Dimension and weight
Product dimension: 46.7x32.6x81.3cm
Net weight: 41.9kg

Errors and omissions are possible.  All specifications are subject for change without prior notice.

  • Dimensions

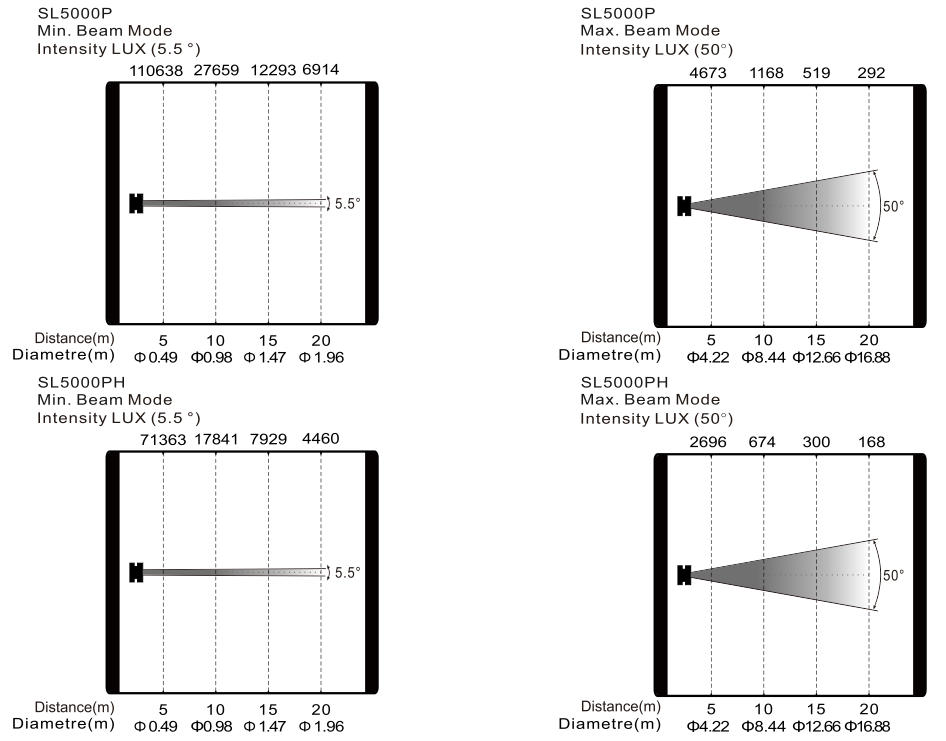

  • Photometrics
  • Colours/ Gobos
  • Video
  • Related materials and tools to download
  • Library
    SL5000PH(Avolites D4) ZIP 0.18MB
    SL5000PH(grandMA2) ZIP 1.17MB
    SL5000PH(grandMA3 GDTF) ZIP 1.04MB
  • CAD Drawing
    SL5000PH_CAD Symbol 3D.DWG 3D FILE DWG 0.58MB
