SL1000P

  • Specification
Optical system
Source: 1000W White LED
Fixture CT: 6700K
Lamp life expectancy:20,000h
CRI: ≥70  (SL1000PH: up to 95)
Fixture output: 52,000lm

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning

Color system
CMY+CTO color mixing
1 Color wheel: 6 dichroic filters + open

Gobo system
1 Rotating gobo wheel:6 interchangeable gobos + open. Gobo OD: 30mm
1 Static gobo wheel:7 interchangeable gobos + open
1 Animation wheel

Effects
Motorized focus
Zoom range: 6.5°-55° (SL1000PH: 7°-55°)
Auto focus
2 Rotating prisms: 4 linear + 4 facet
Frost: light frost, heavy frost
4 individually positionable blades with ±45°rotation of the complete framing system
Iris
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse

Protection rating
IP20

Display
Battery operated for fast addressing, 15 seconds standby auto lock
Pan/tilt disengage (hold Left arrow and Right arrow buttons)

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 39/37/60CH

Control
Input signal isolation
Auto thermal protection circuit
RDM protocol

Electric parameter
AC220-240V, 50/60Hz
Power: 1350W

Dimension and weight
Product dimension: 47.9x32.6x83.4cm
Packing dimension (carton): 96.5x59.5x46.5cm
Net weight: 41.0kgs
Gross weight (carton): 52.0kgs


Errors and omissions are possible.  All specifications are subject for change without prior notice.

  • Dimensions

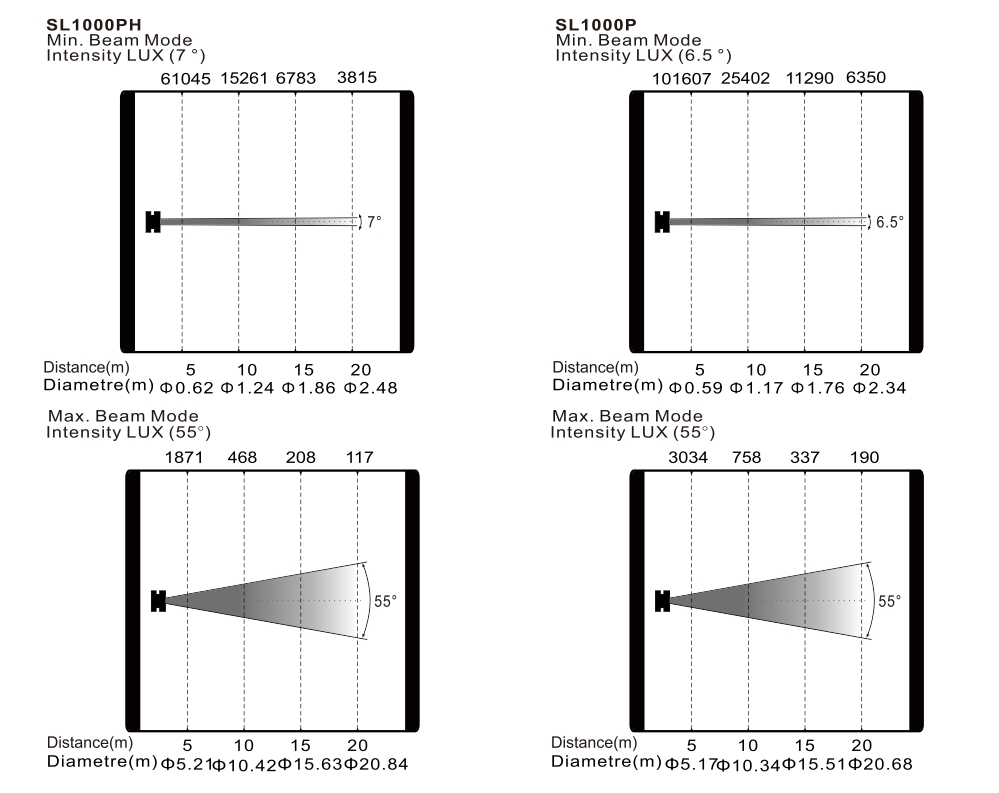

  • Photometrics
  • Colours/ Gobos
  • Video
  • Related materials and tools to download
  • Library
    SL1000P(grandMA2) RAR 0.02MB
    SL1000P(Avolites D4) RAR 0.18MB
    SL1000P(grandMA3 GDTF) RAR 1.06MB
  • CAD Drawing
    SL1000P_Dimensional Drawings.dwg 2D file DWG 1.56MB
