S550H IP

  • Specification
Optical system
Source: Philips Platinum 25R, 550W
Fixture CT: 6400K
Lamp life expectancy:1,500h
Fixture output: 22,000lm

Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning

Color system
CMY+CTO color mixing
1 Color wheel: 14 dichroic filters + open

Gobo system
1 Rotating gobo wheel: 8 interchangeable gobos + open. Gobo OD: 16.3mm
1 Static gobo wheel: 14 gobos + open
1 Animation wheel

Motorized focus
Zoom range: beam mode: 2.2°-27°, spot mode: 3°-40.5°,wash mode: 6 -38°
Auto focus
2 Rotating prisms: 4 linear + 8 facet prism, dynamic prism morph,indexable with macros

Dimming: 0-100% linear dimming
Shutter: mechanical with various speed

Protection rating

Battery operated for fast addressing, 15 seconds standby auto lock
Pan/tilt disengage (hold Left arrow and Right arrow buttons)

Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 27/25/39CH

Input signal isolation
Auto thermal protection circuit
RDM protocol

Electric parameter
AC200-240V, 50/60Hz
Power: 800W

Dimension and weight
Product dimension: 46.8x37.0x77.3cm
Packing dimension (carton): 89.0x57.0x53.5cm
Net weight: 42.6kgs
Gross weight (carton): 49.5kgs

Patented: optical system capable of beam, spot and wash modes

Errors and omissions are possible.  All specifications are subject for change without prior notice.

  • Dimensions

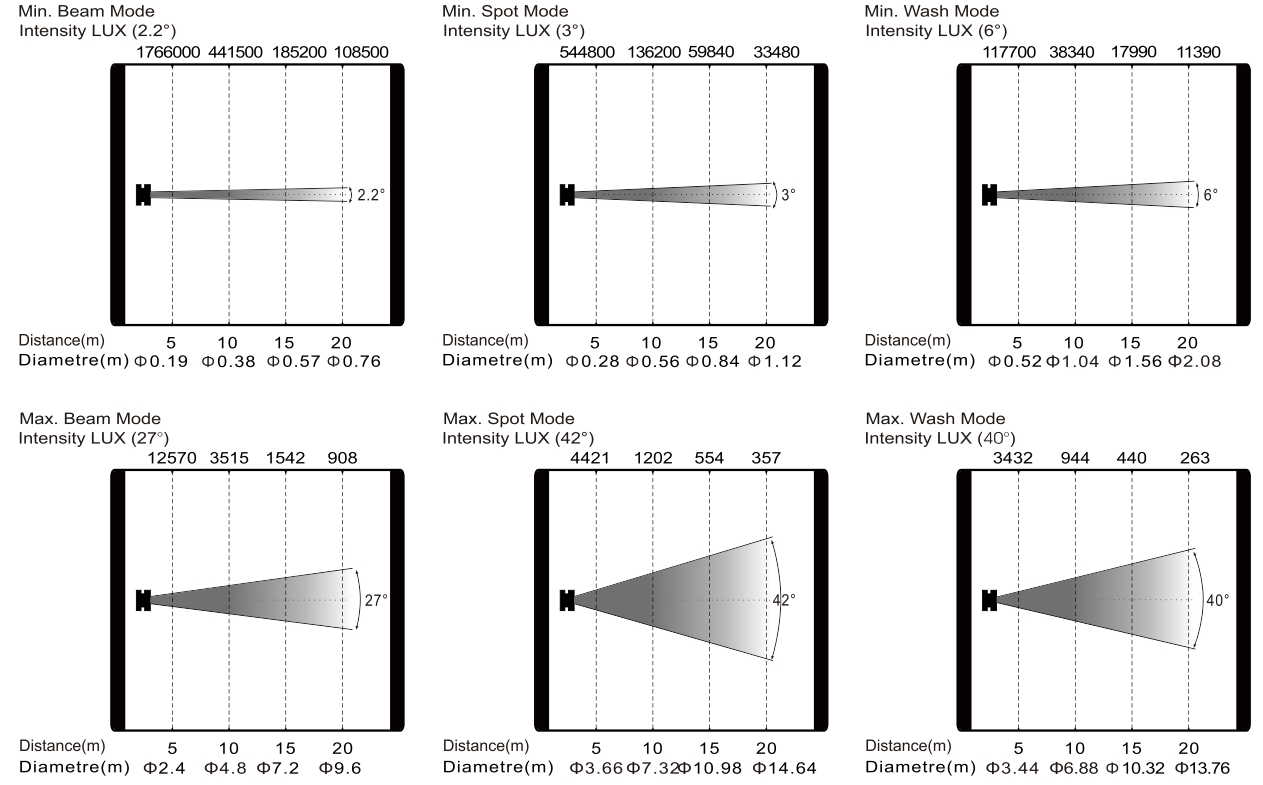

  • Photometrics
  • Colours/ Gobos
  • Related materials and tools to download
  • Library
    S550H IP(grandMA2) RAR 0.03MB
    S550H IP(Compulite Vector series) ZIP 0.53MB
    S550H IP(Avolites D4) RAR 0.15MB
    S550H IP(grandMA3 GDTF) RAR 0.55MB
  • CAD Drawing
    S550H IP_Dimensional Drawings.dwg 2D file DWG 3.59MB
    S550H IP_CAD Symbol 3D.dwg 3D FILE DWG 0.83MB
