S380H IP

  • Specification
Optical system
Source: Philips MSD Platinum Flex 300, 380W
Fixture CT: 6200K
Life span:6,000h
Fixture output: 15,000lm

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning

Color system
CMY color mixing
1 Color wheel: 14 dichroic filters + open

Gobo system
1 Rotating gobo wheel: 8 interchangeable gobos + open. Gobo OD: 16.3mm
1 Static gobo wheel: 14 gobos + open

Effects
Motorized focus
Zoom range: beam mode: 2.2°- 27.5°,spot mode: 5.5°- 44°,wash mode: 5.5°-39.5°
Auto focus
2 Rotating prisms: 4 linear + 8 facet,dynamic prism morph
Frost
Dimming: 0-100% linear dimming
Shutter: mechanical with various speed

Protection rating
IP66

Display
Battery operated for fast addressing,15 seconds standby auto lock
Pan/tilt disengage (hold Left arrow and Right arrow buttons)

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 25/23/36CH

Control
Input signal isolation
Auto thermal protection circuit
RDM protocol

Electric parameter
AC200-240V, 50/60Hz
Power: 580W

Dimension and weight
Product dimension: 46.8x37.0x71.8cm
Packing dimension (carton): 86.5x57.0x50.5cm
Net weight: 41.7kgs
Gross weight (carton): 48.0kgs

Errors and omissions are possible.  All specifications are subject for change without prior notice.

  • Dimensions

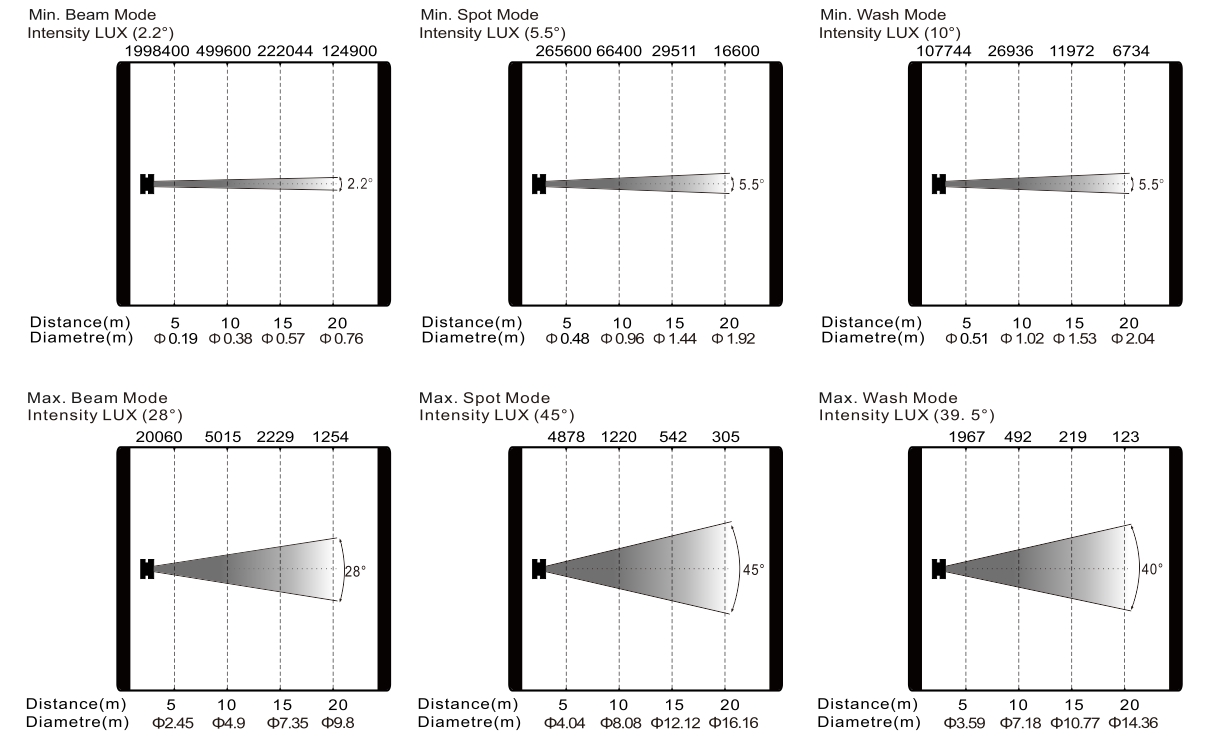

  • Photometrics
  • Colours/ Gobos
  • Related materials and tools to download
  • Library
    S380H IP(Avolites D4) RAR 0.15MB
    S380H IP(Compulite Vector series) RAR 0.41MB
    S380H IP(grandMA2) RAR 0.03MB
    S380H IP(grandMA3 GDTF) RAR 0.54MB
  • CAD Drawing
    S380H IP_Dimensional Drawings.dwg 2D file DWG 2.17MB
    S380H IP_CAD Symbol 3D.dwg 3D FILE DWG 0.72MB
