S380H

  • Specification
Optical system
Source:Philips MSD Platinum Flex 300, 380W
Fixture CT: 8000K
Life span:6000h
Fixture output: 17200lm

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning

Color system
CMY color mixing
1 Color wheel: 14 dichroic filters + open

Gobo system
1 Rotating gobo wheel: 8 interchangeable gobos + open. Gobo OD: 16.3mm
1 Static gobo wheel: 14 gobos + open

Effects
Motorized focus
Zoom range: beam mode:2.2°- 28°;spot mode:5.5°-42°;wash mode:10°-40°
Auto focus
2 Rotating prisms: 4 linear + 16 facet,dynamic prism morph
Frost
Dimming: 0-100% linear dimming
Shutter: mechanical with various speed

Protection rating
IP20

Display
Battery operated for fast addressing,15 seconds standby auto lock
Pan/tilt disengage (hold Left arrow and Right arrow buttons)

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 25/23/36CH

Control
Input signal isolation
Auto thermal protection circuit
RDM compatible

Electric parameter
AC200-240V, 50/60Hz
Power: 580W

Dimension and weight
Product dimension: 38.9x32.6x64.2cm
Packing dimension (carton): 74.0x50.0x45.5cm
Net weight: 22.9kgs
Gross weight (carton): 29.0kgs

Errors and omissions are possible.  All specifications are subject for change without prior notice.

  • Dimensions

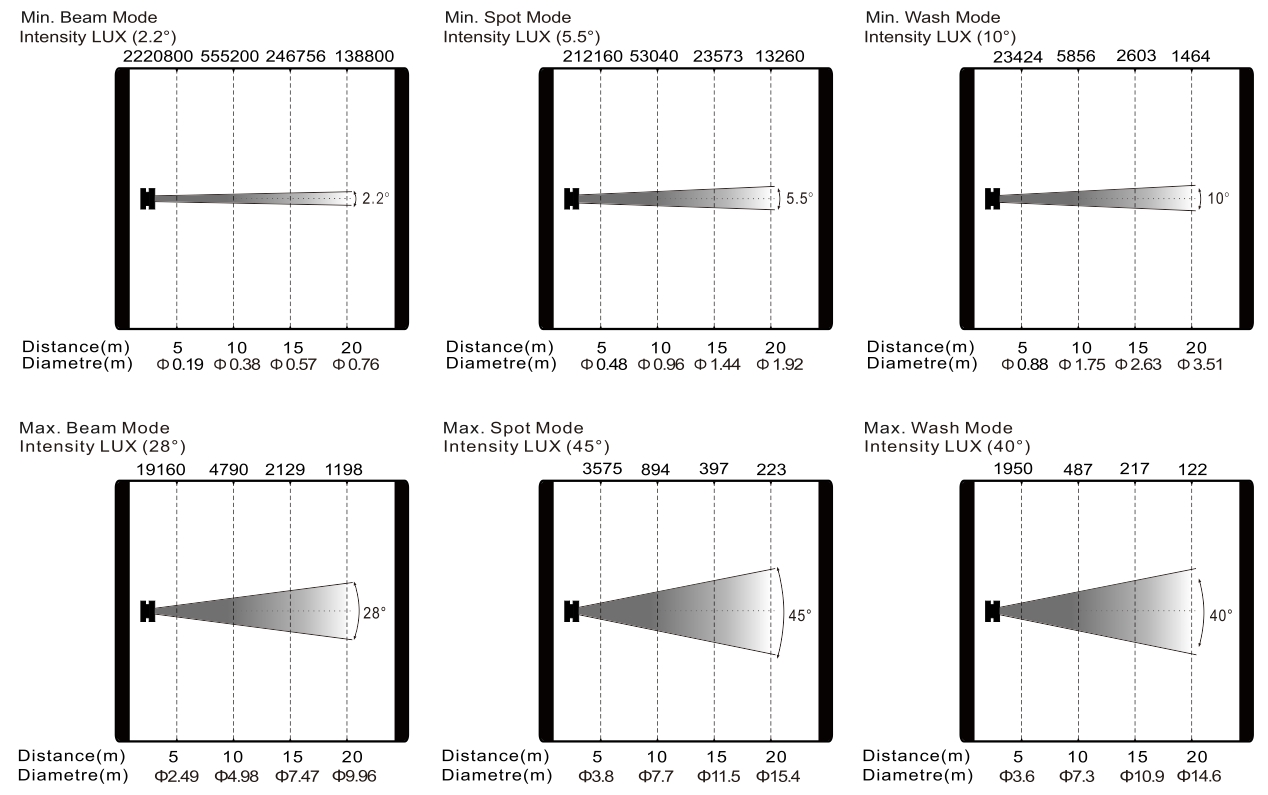

  • Photometrics
  • Colours/ Gobos
  • Video
  • Related materials and tools to download
  • Library
    S380H(Avolites D4) RAR 0.15MB
    S380H(grandMA2) RAR 0.03MB
    S380H(Compulite Vector series) RAR 0.32MB
    S380H(grandMA3 GDTF) RAR 0.52MB
  • CAD Drawing
    S380H_Dimensional Drawings.dwg 2D file DWG 1.85MB
