GLW1940

  • Specification
Optical system
Source: 19x40W RGBW LED
LED life expectancy:50,000h
Fixture output:≥12,000lm

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning

Color system
RGBW color mixing
Color temperature linear: 2700K to 8000K, Color temperature presets: 2700K, 3200K, 4300K, 5600K, 6500K, 8000K

Effects
Zoom range:5°- 59°
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Pixel Control
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different cameras' linearity
Refresh rate: 900Hz-25,000Hz

Protection rating
IP20

Display
Battery operated for fast addressing,15 seconds standby auto lock
Pan/tilt disengage (hold Left arrow and Right arrow buttons)

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of light source and fixture
3 Control channel modes: 25/19/95CH

Control
Input signal isolation
Art-Net control
RDM protocol

Electric parameter
AC100-240V, 50/60Hz
Power: 900W

Dimension and weight
Product dimension: 39.3 x 31.1 x 50.0 cm
Packing dimension (carton): 60.0 x 49.0 x 44.5cm
Net weight: 16kgs
Gross weight (carton): 21kgs

Errors and omissions are possible.  All specifications are subject for change without prior notice.

  • Dimensions

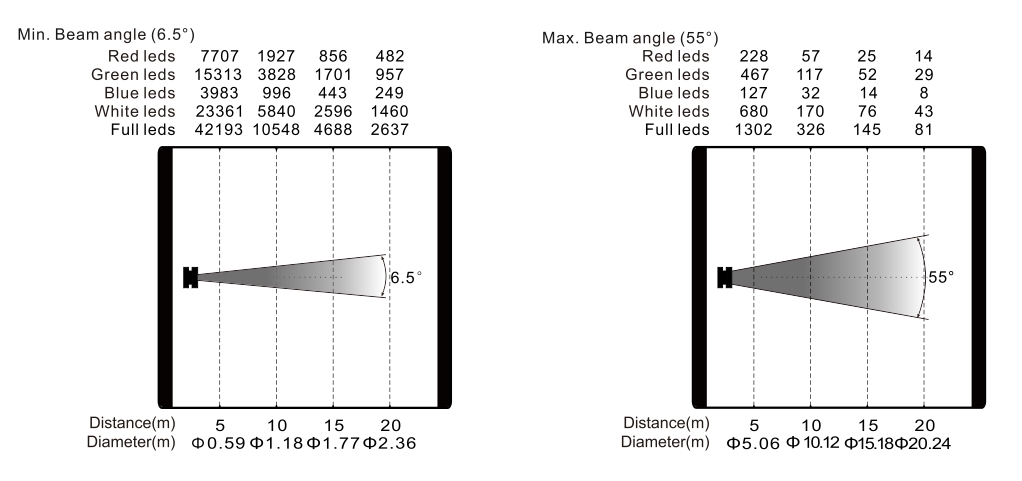

  • Photometrics
  • Related materials and tools to download
  • Library
    GLW1940(Avolites D4) RAR 0.04MB
    GLW1940(grandMA3 GDTF) RAR 0.23MB
    GLW1940(grandMA2) RAR 0.01MB
  • CAD Drawing
    GLW1940_CAD Symbol 3D.DWG 3D FILE DWG 0.83MB
