GLW760 IP

  • Specification

Optical system
Source: 7x 60W RGBW LED
Life span:>20,000h
Fixture output:7,300lm

Movement
Pan: infinite rotation(16 bit)
Tilt: infinite rotation (16 bit)
Auto X/Y repositioning

Color system
RGBW color mixing
Color temperature linear: 2700K to 8000K,Color temperature presets: 2700K, 3200K, 4300K, 5600K, 6500K, 8000K

Effects
Zoom: 5.5°-56.5° (beam angle), 7.5°-75.5° (field angle)
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Pixel control
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different visual linearity requirements

Protection rating
IP65(IP66 optional)

Display
Battery operated for fast addressing, 15 seconds standby auto lock
Pan/tilt disengage (hold Left arrow and Right arrow buttons)

Software
Upgrade with DMX and USB as optional
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 26/20/48CH

Control
Input signal isolation
Optional installed wireless receiver
Art-Net control
RDM compatible

Electric parameter
AC100-240V, 50/60Hz
Power: 700W

Dimension and weight
Product dimension: 36.3x26.0x49.3cm
Packing dimension (carton): 60.0x48.0x39.5cm
Net weight: 18.7kgs
Gross weight (carton): 22.6kgs

Errors and omissions are possible.  All specifications are subject for change without prior notice.

  • Dimensions

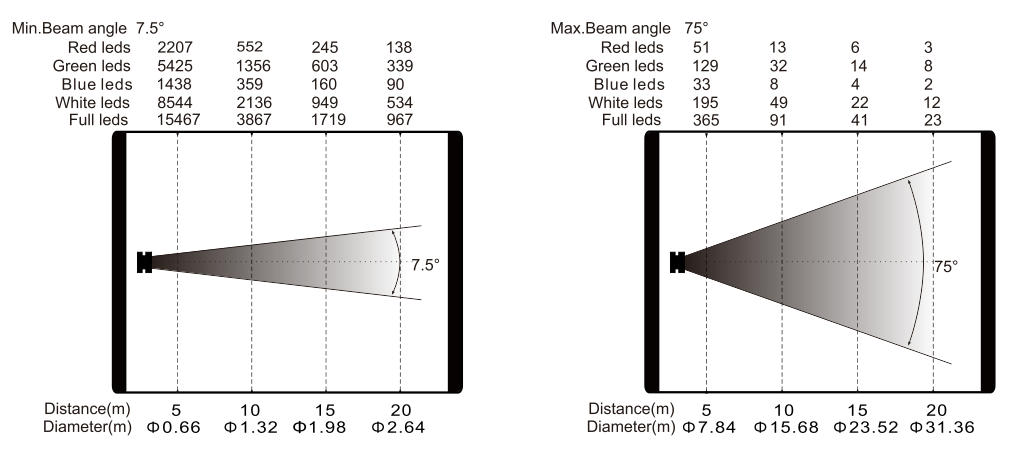

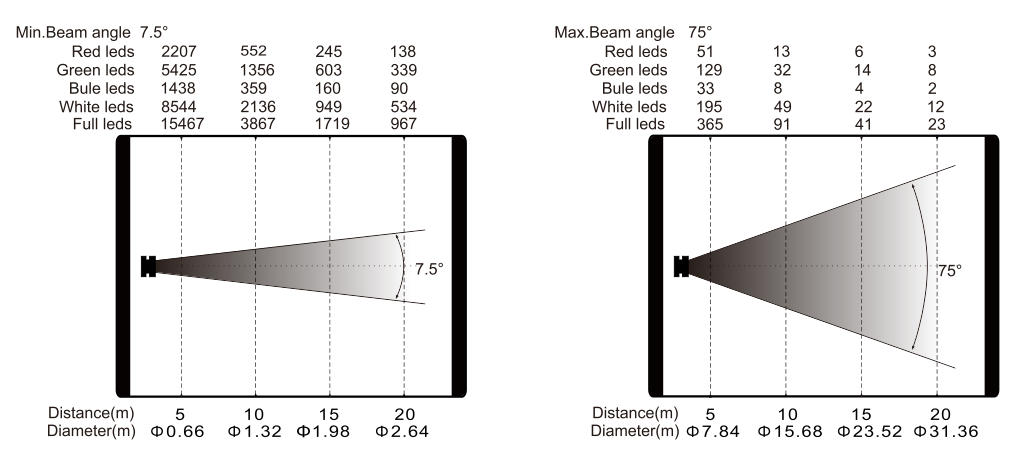

  • Photometrics
  • Related materials and tools to download
  • Library
    GLW760 IP(grandMA2) RAR 0.01MB
    GLW760 IP(Avolites D4) RAR 0.01MB
    GLW760 IP(Compulite Vector series) RAR 0.4MB
    GLW760 IP(grandMA3 GDTF) RAR 0.48MB
  • CAD Drawing
    GLW760 IP_CAD Symbol 3D.DWG 3D FILE DWG 0.71MB
    GLW760 IP_Dimensional Drawings.dwg 2D FILE DWG 1.16MB
