Optical system
Source: 230W White LED
Fixture CT: 8500K
Life span：>20,000h
CRI: up to 72

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning

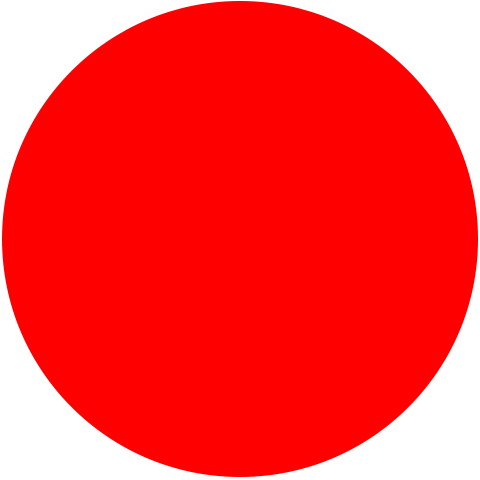

Color system

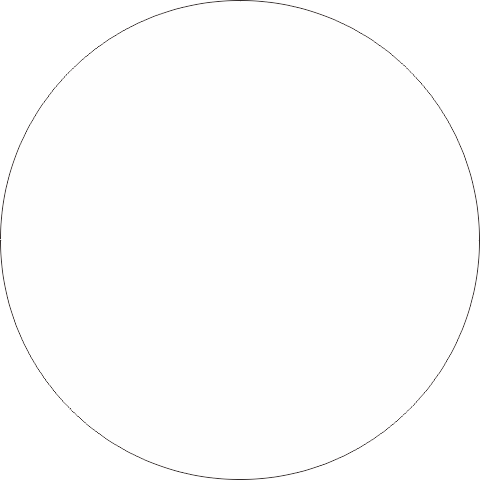

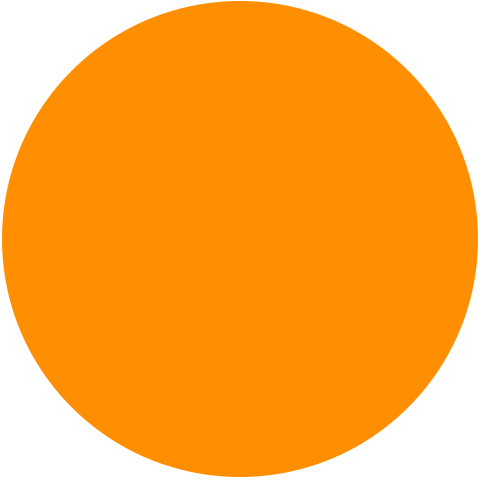

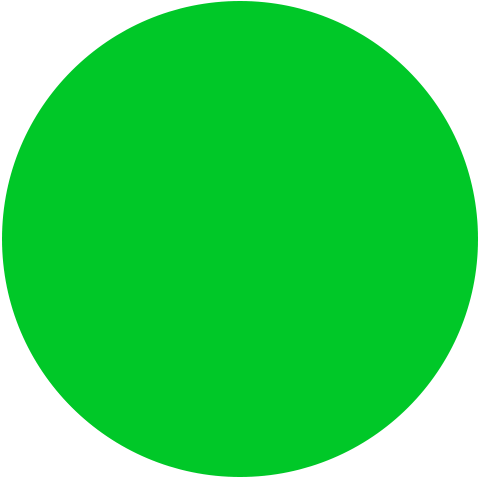

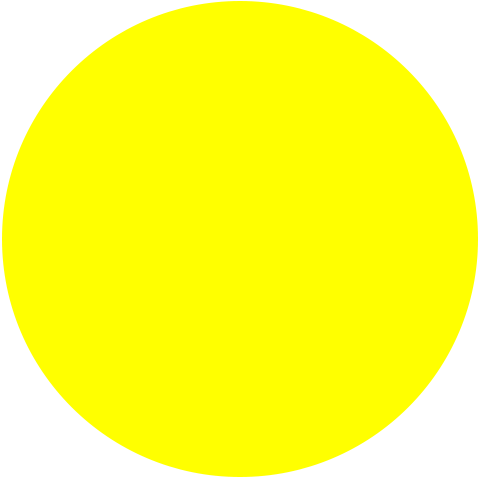

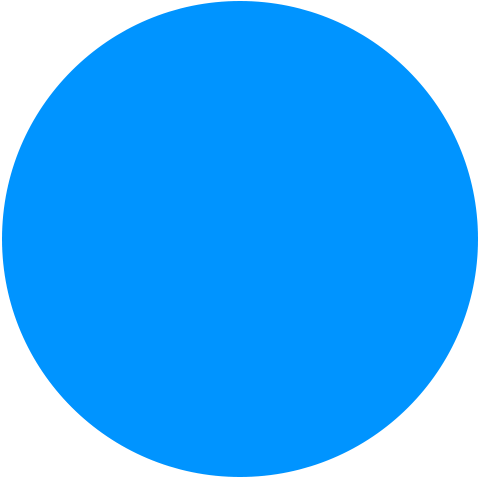

1 Color wheel: 7 dichroic filters + open

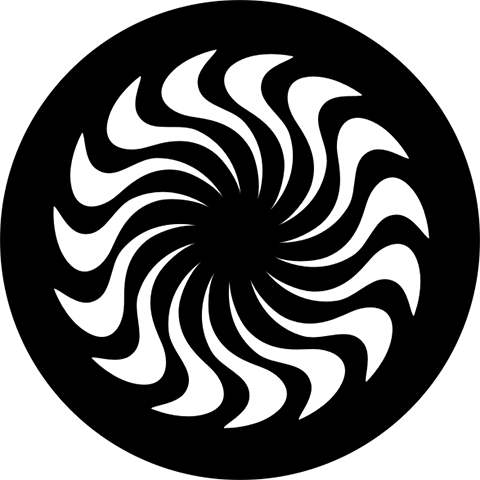

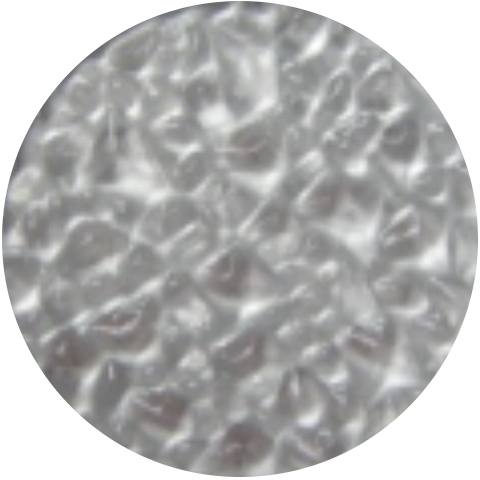

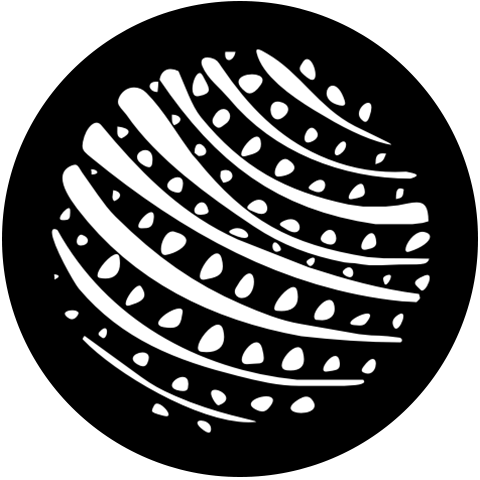

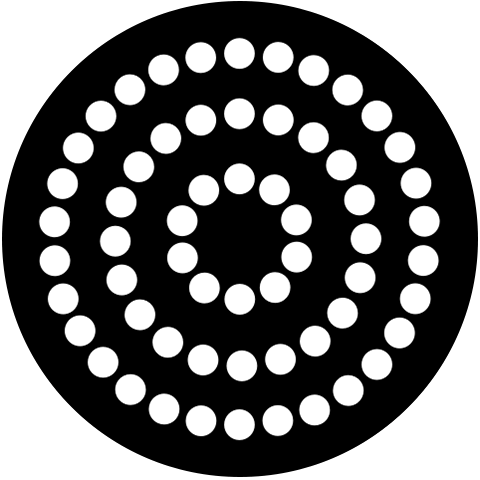

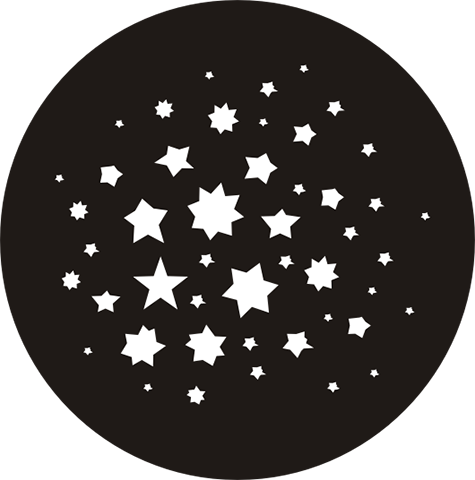

Gobo system

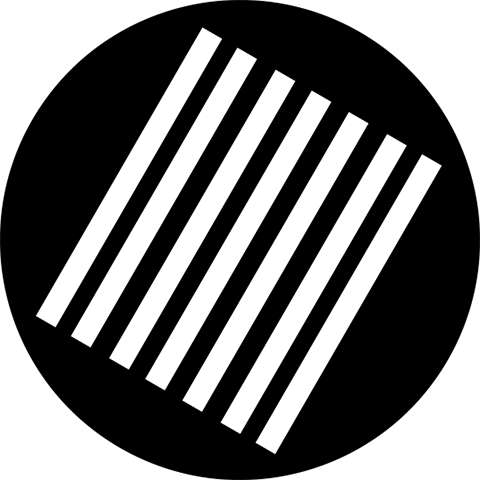

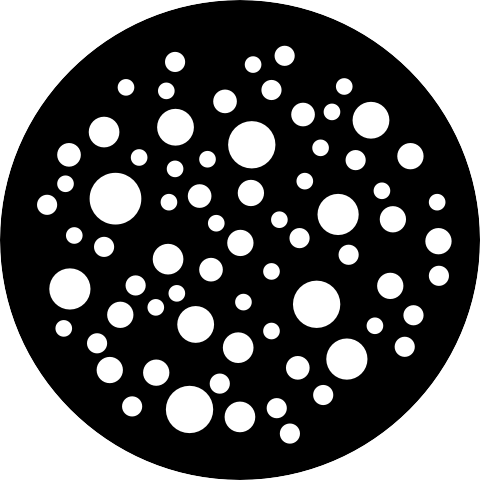

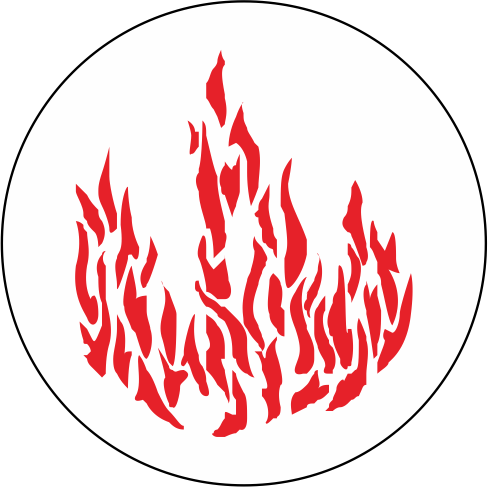

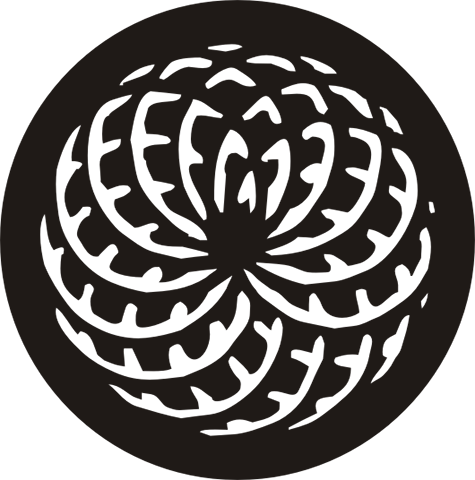

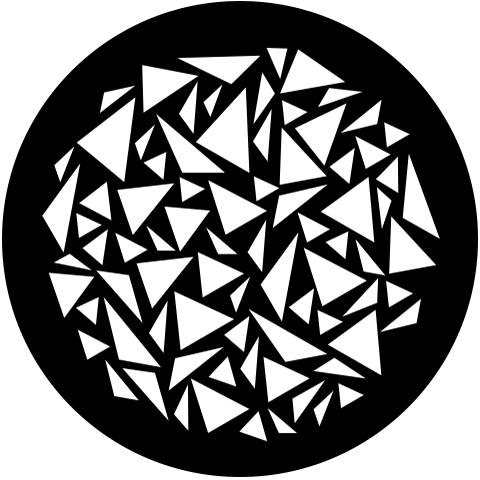

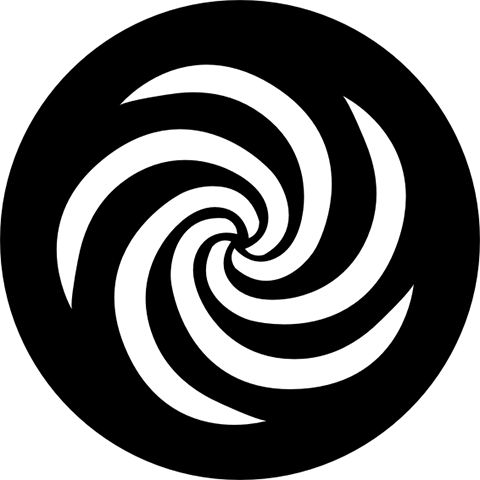

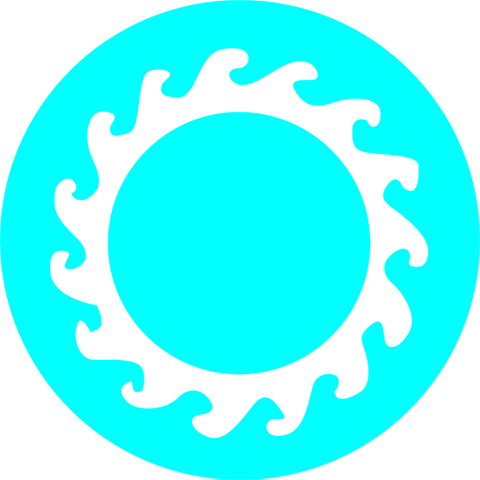

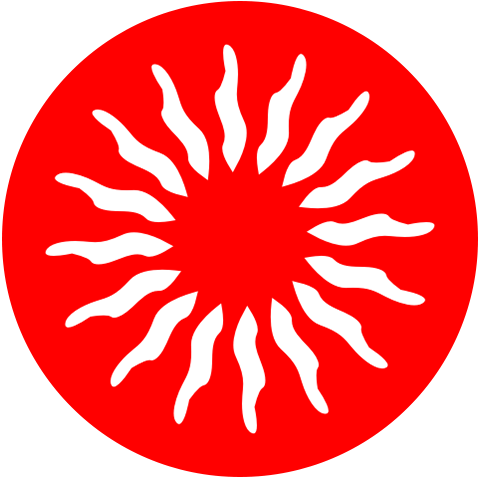

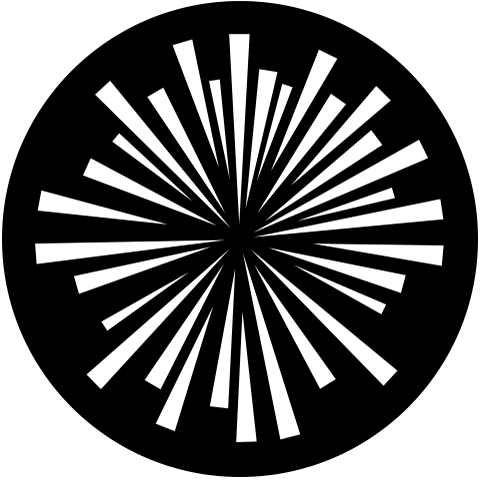

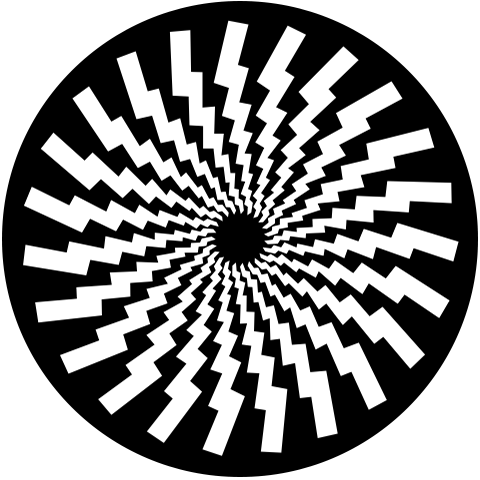

1 Rotating gobo wheel: 7 interchangeable gobos + open. Gobo OD: 27mm
1 Static gobo wheel: 7 interchangeable gobos + open
1 Animation wheel

Effects
Motorized focus

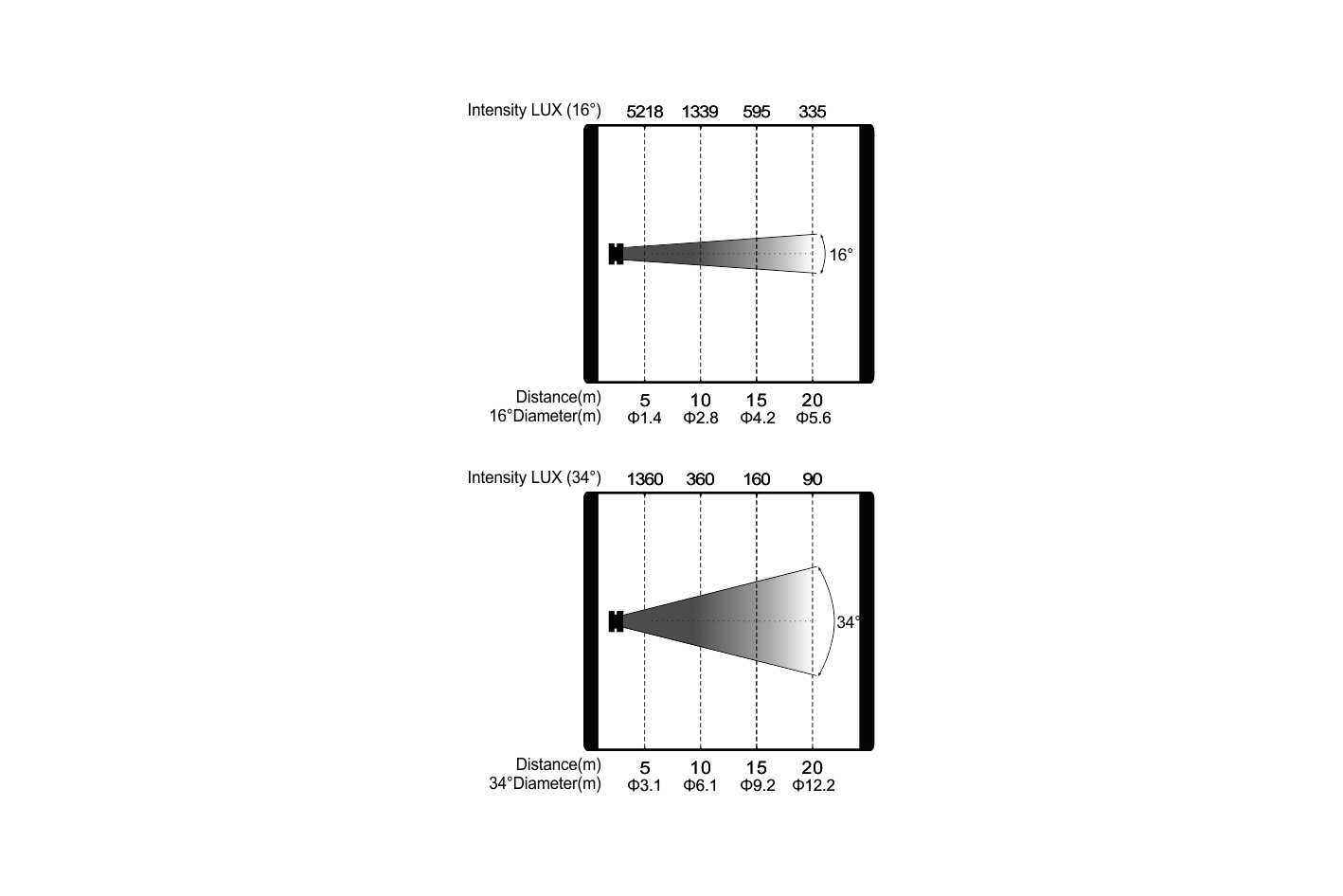

Zoom: 16°-34° linear zoom
1 Rotating prism: 3 facet
Frost
Iris
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or random strobe

Protection rating
IP20

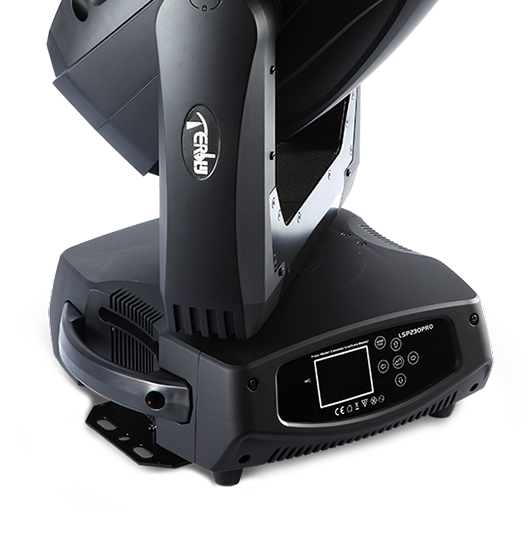

Display
Battery operated for fast addressing,15 seconds standby auto lock
Pan/tilt disengage (hold Left arrow and Right arrow buttons)

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 22/20/30CH

Control
Input signal isolation
RDM compatible
Electric parameter
AC100-240V, 50/60Hz
Power: 350W

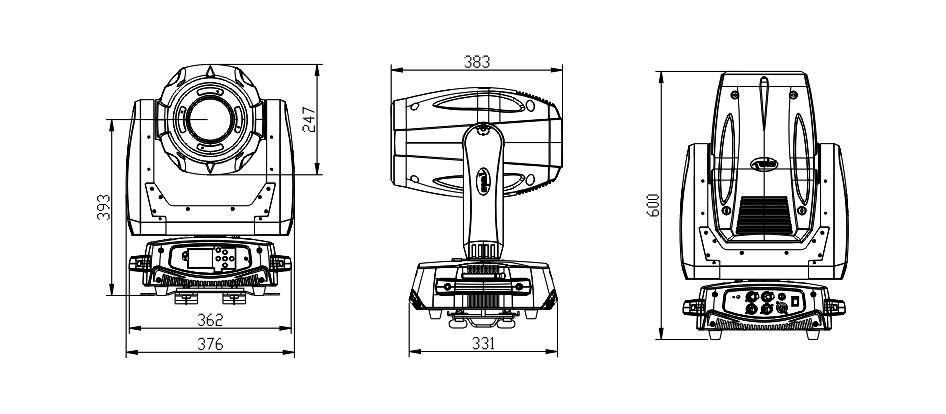

Dimension and weight
Product dimension: 37.6x33.1x60.0cm
Packing dimension (carton): 75.0x48.5x46.5cm
Net weight: 20.5kgs
Gross weight (carton): 25.0kgs
