Optical system
Source: Philips MSD Platinum 19 R LL, 420W
Fixture CT：7200K
Light source life expectancy：5000 hours service life at full power; 8000 hours service life in entertainment mode (based on Golden Sea Laboratory data; actual performance may vary depending on the operating environment)*

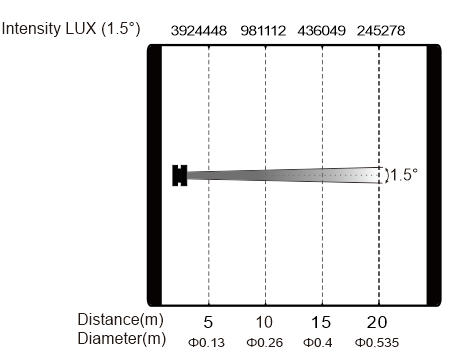

Illuminance: up to 245000ux@20m

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)

Auto pan/ tilt repositioning

Color system
CMY color mixing

1 color wheel：14 dichroic filters + open , indexable, split color effect, rainbow effect

Gobo system

1 Static gobo wheel:15 gobos + open

Effect
Motorized focus
Beam angle: 1.5º
2 Rotating prism: 4 linear prism + 8 facet prism, indexable, rotating in both directions，16 prism macros
Frost
Dimming: 0-100% linear dimming

Shutter: mechanical, variable from 1-25Hz or pulse

Protection rating

IP20

Display
Display:  without rechargeable battery (optional with rechargeable battery, locked automatically after standby for 15 seconds）

Pan/tilt disengage (hold Left and Right arrow buttons), support to complete the reset detection in the flight case

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 19/17/27 CH

Auto thermal protection

Control
Input signal isolation

RDM protocol

Electric parameter
AC200-240V,  50/60Hz

Power consumption: 600W

Dimension and weight

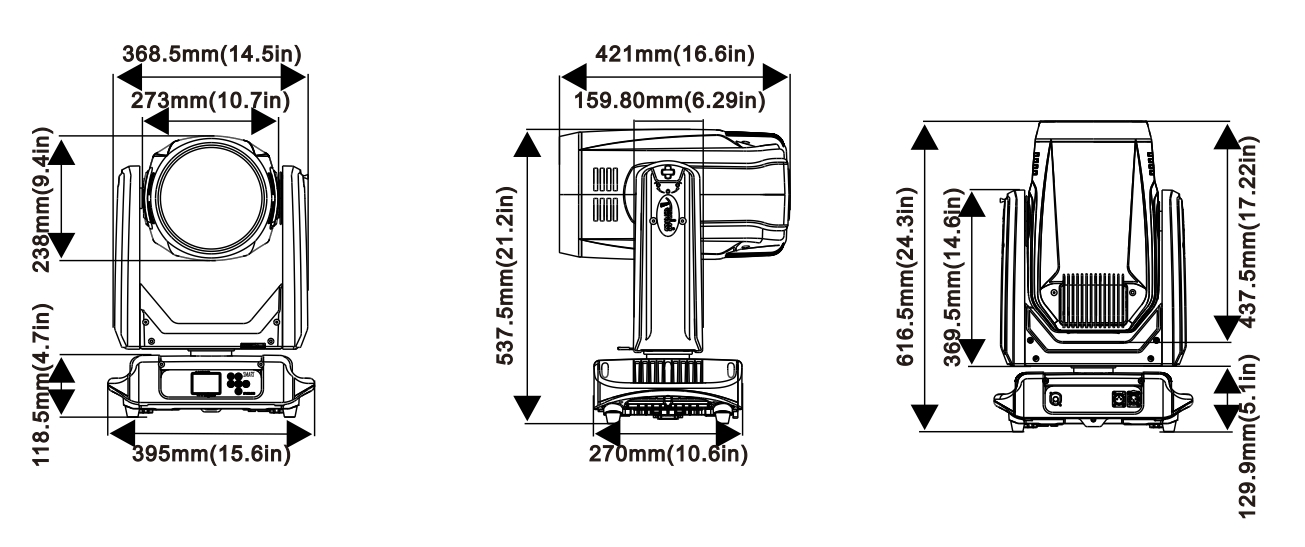

Product dimension: 395x270x617mm
Packing dimension (carton): 730x475x385mm
Net weight: 20 kg
Gross weight (carton): 24 kg

*Testing conditions in the lab may differ based on various factors.
