Optical system
Source: 40W RGB laser
Fixture CT：adjustable from 2700K to 8000K
Light source life expectancy：30000 hours  Average Light Source Life*

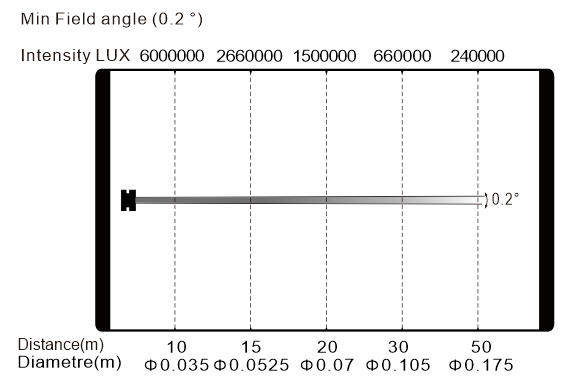

Illuminance: up to 660000lux @ 30m

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto pan/ tilt repositioning

Color system
RGB color mixing, color gamut covers 150% of NTSC and 100% of BT.2020

Gobo system
1 Static gobo wheel: 15 gobos + open.

Effect
Motorized focus
Zoom range: 0.2°-30°
Auto focus
1 Rotating prism: 6 facet + 8 facet , findexable, rotating in both directions
Frost system
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse

Protection rating
IP66

Display
Display: Battery operated for fast addressing,15 seconds standby auto lock
Pan/tilt disengage (hold Left and Right arrow buttons), support to complete the reset detection in the flight case

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
2 Control channel modes: 20/30 CH
Auto thermal protection

Control
Input signal isolation
Optional installed wireless receiver: 4G module cloud system, mobile APP access
RDM protocol

Electric parameter
AC200-240V,  50/60Hz
Power consumption: 450W (standby power), 500W (active power)

Dimension and weight

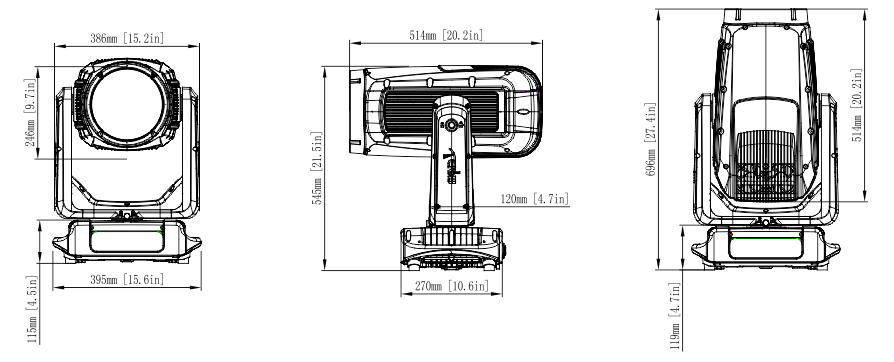

Product dimension: 395x270x695mm
Packing dimension (carton): 808x475x385mm
Net weight: 30kg
Gross weight (carton): 33kg

*Testing conditions in the lab may differ based on various factors.
