Optical system
Source: 1800W White LED
Fixture CT: 6500K
Light source life expectancy：20,000 hours  Average Light Source Life*
CRI: Ra≥70（SL18PH：Ra≥95）
Optical lens: High-definition optical lens

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning

Color system
CMY+CTO color mixing
Color temperature linear: 2700K-6500K

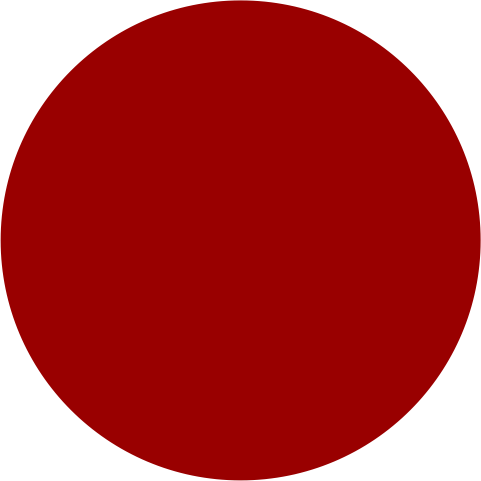

1 Color wheel: 6 dichroic filters + open

Gobo system

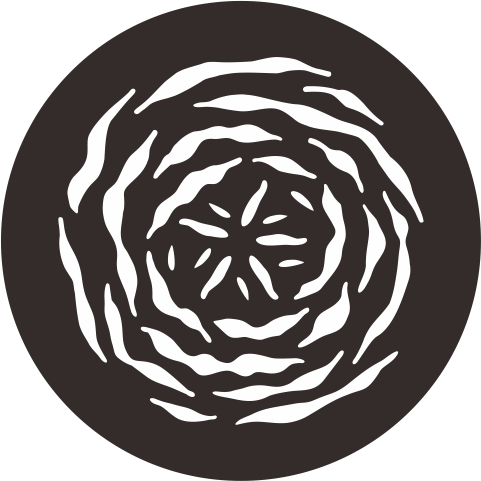

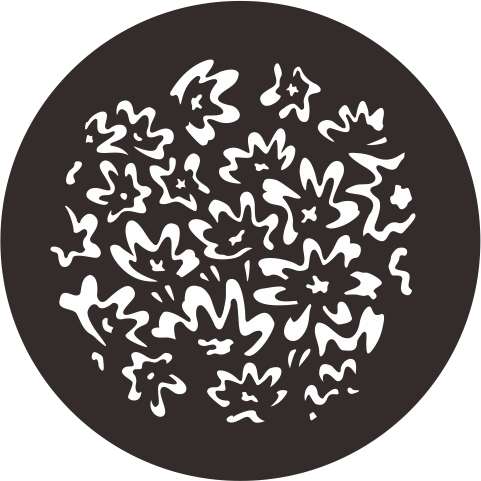

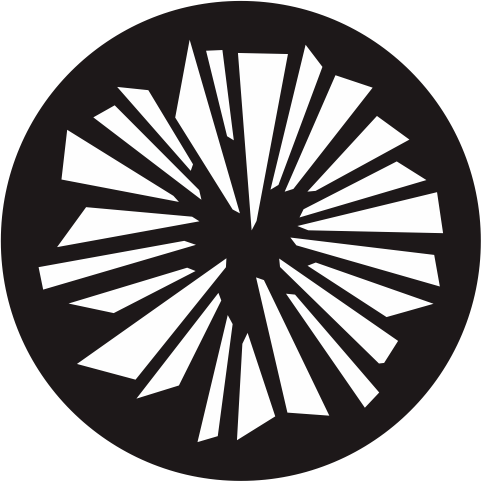

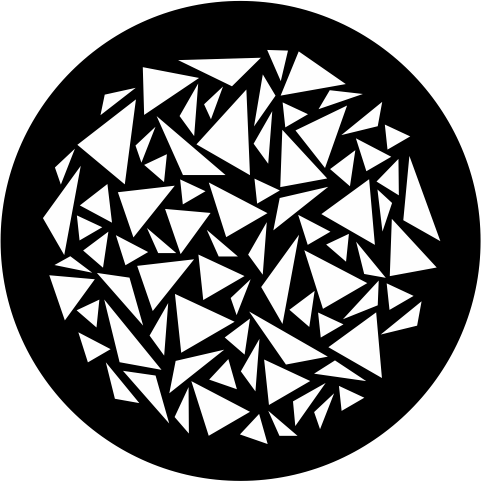

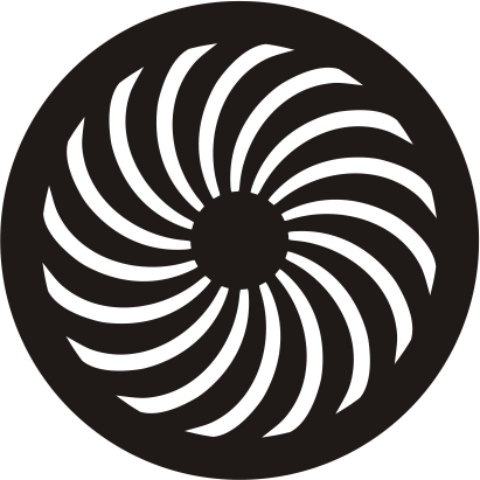

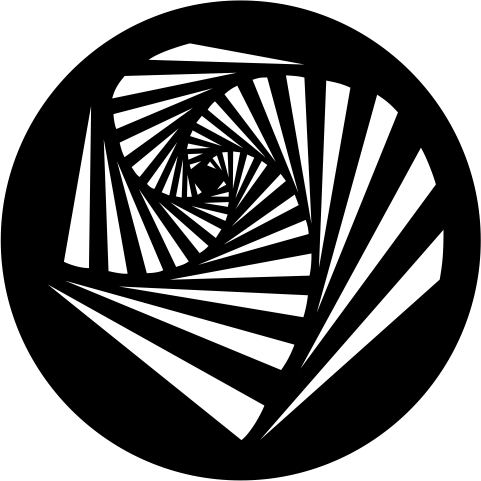

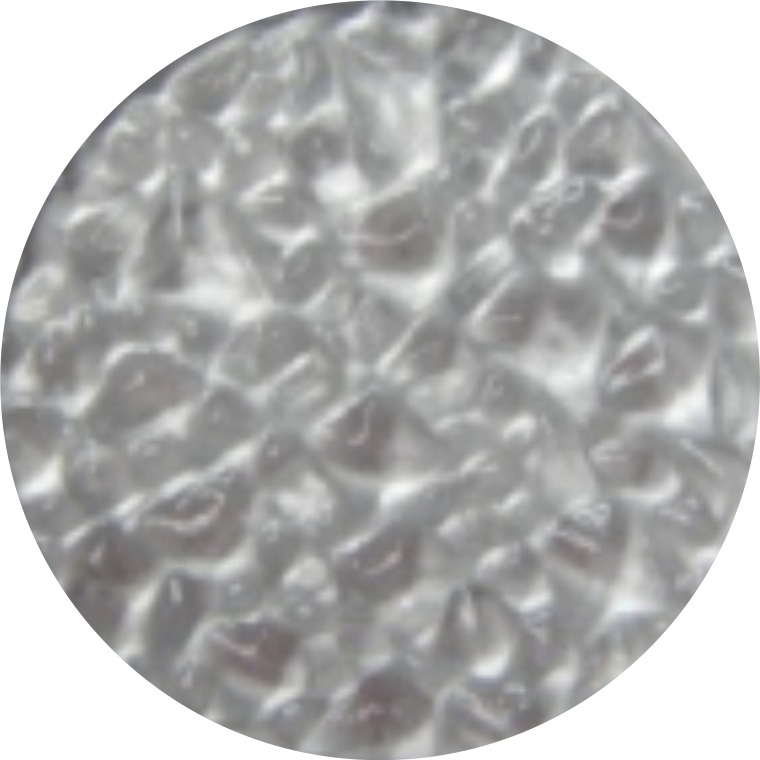

1 Rotating gobo wheel:6 interchangeable gobos + open. Gobo OD: 36mm

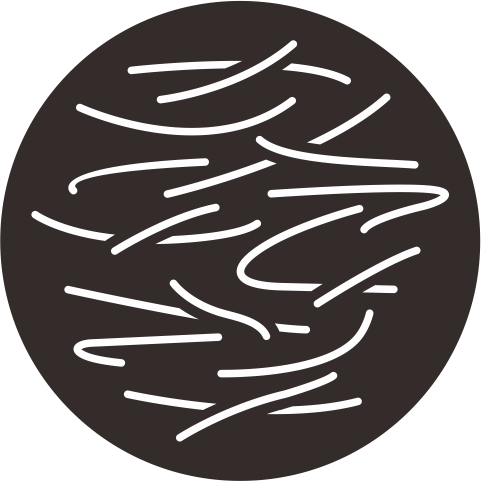

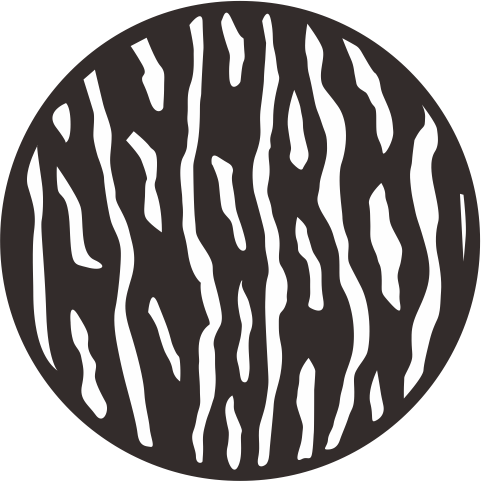

1 Static gobo wheel:7 interchangeable gobos + open
1 Animation wheel

Effects
Motorized focus

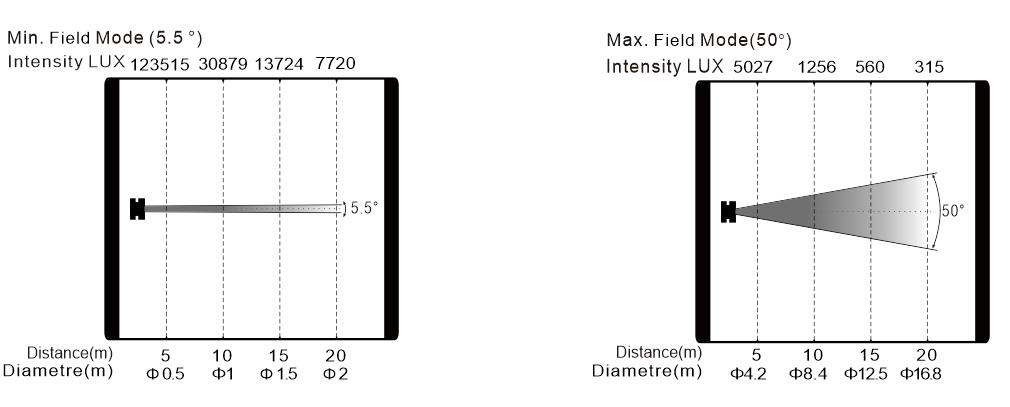

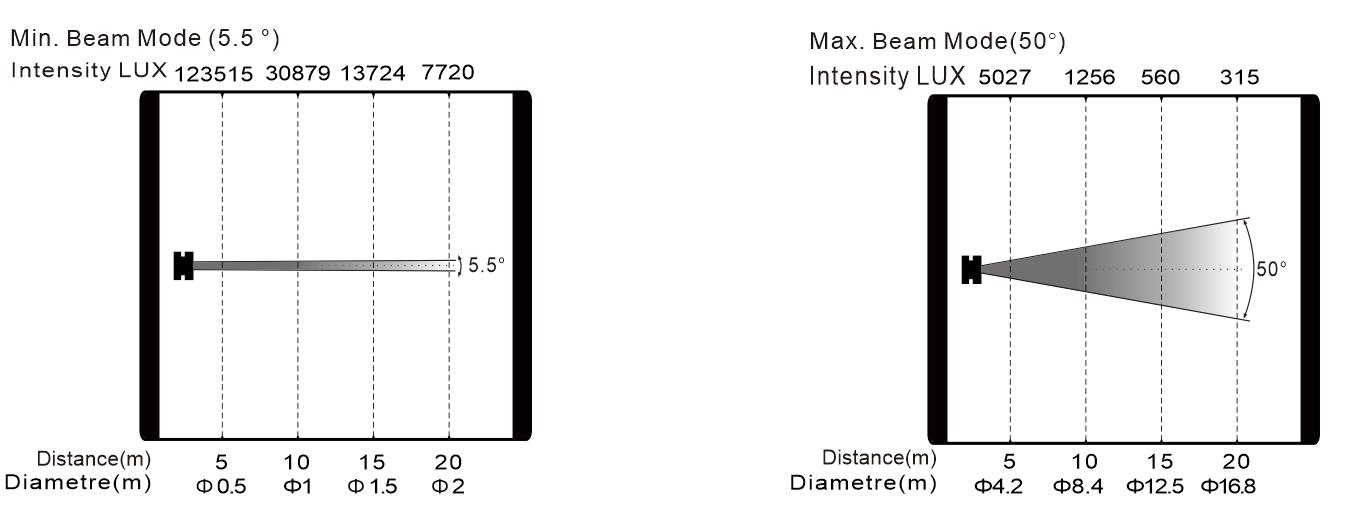

Zoom range: 5.5°- 50°
Auto focus
2 Rotating prisms: 4 linear + 4 facet
Frost: light frost, heavy frost
4 individually positionable blades with ±90°rotation of the complete framing system
Iris
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different camera's linearity
Refresh rate: 900Hz-25000Hz

Protection rating
IP20

Display
Pan/tilt disengage (hold Left arrow and Right arrow buttons)

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
2 Control channel modes: 40/62CH
Auto thermal protection circuit

Control
Input signal isolation
Optional installed wireless receiver
RDM protocol

Electric parameter
AC200-240V, 50/60Hz
Power: 1950W

Dimension and weight

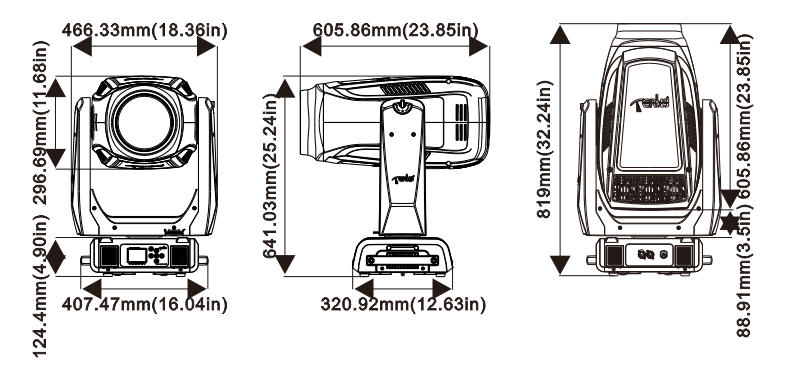

Product dimension: 466x321x819mm
Net weight: 42 kg

*Testing conditions in the lab may differ based on various factors.
