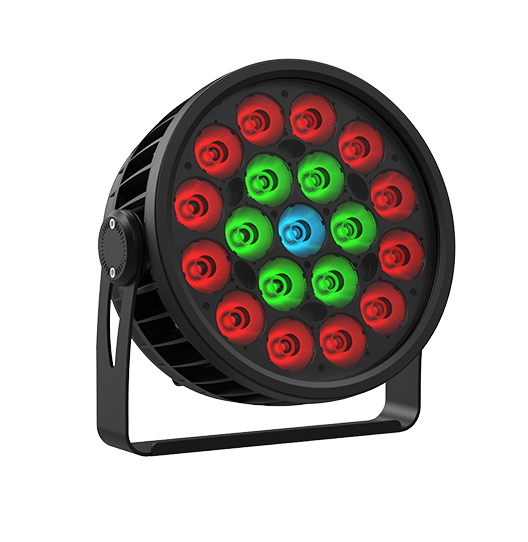

GS-PAR19
- Specification
Optical system
Source: 19x20W RGBW LED
Fixture CT: 6000K, CCT channel: Color temperature adjustment
Light source life expectancy：50,000 hours Average Light Source Life*
CRI: Ra≥70(optional High CRI: Ra: up to 90）
Beam angle: 10°（20°/30°/45°/60°optional）
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Ring control
GAMMA: 2.0，2.2,2.4,2.6,2.8, to fit different camera's linearity
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 9/11/18CH
AC100-240V, 50/60Hz
Product dimension: 293x145x310mm
Net weight: 6kg
*Testing conditions in the lab may differ based on various factors.
Source: 19x20W RGBW LED
Fixture CT: 6000K, CCT channel: Color temperature adjustment
Light source life expectancy：50,000 hours Average Light Source Life*
CRI: Ra≥70(optional High CRI: Ra: up to 90）
Output: 10300lm@VISO (10°)
RGBW color mixing
Beam angle: 10°（20°/30°/45°/60°optional）
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Ring control
GAMMA: 2.0，2.2,2.4,2.6,2.8, to fit different camera's linearity
Refresh rate: 1K,2K,3K,4K,5K,6K,10K,15K,20K,25K
IP66
Fast addressing
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 9/11/18CH
Auto thermal protection circuit
DMX512, RDM compatible(optional)
AC100-240V, 50/60Hz
Power: 300W
Product dimension: 293x145x310mm
Net weight: 6kg
*Testing conditions in the lab may differ based on various factors.
Errors and omissions are possible. All specifications are subject for change without prior notice.

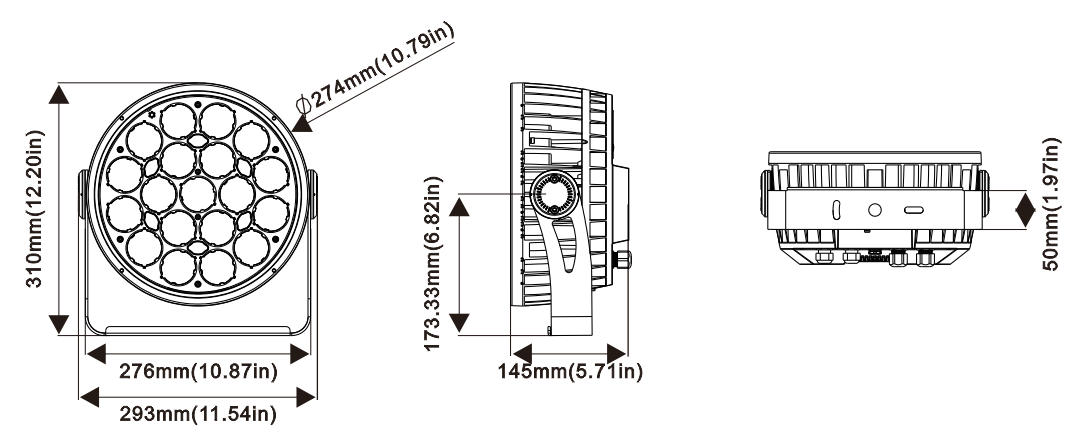

- Dimensions

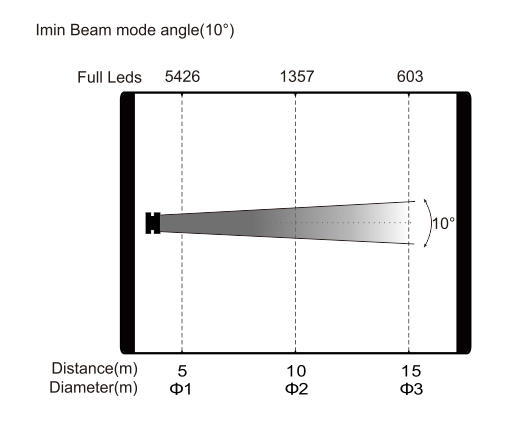

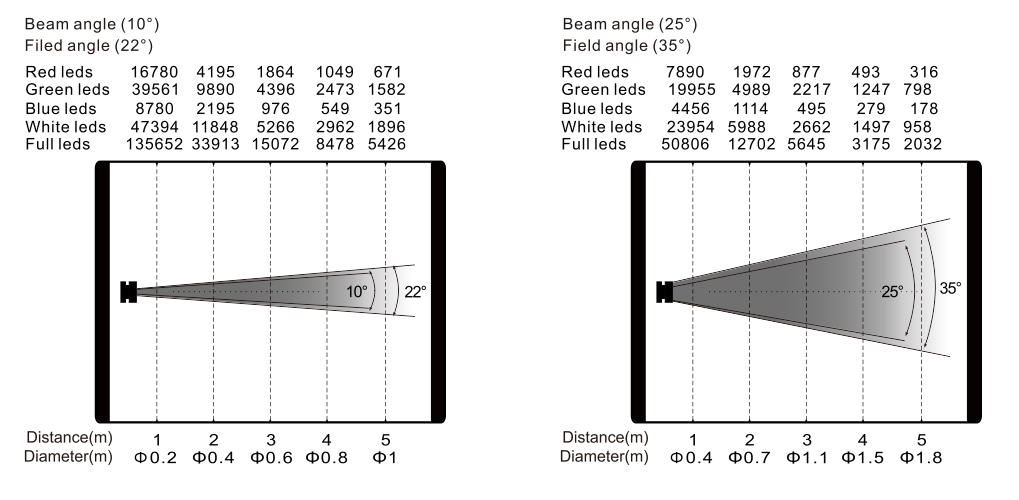

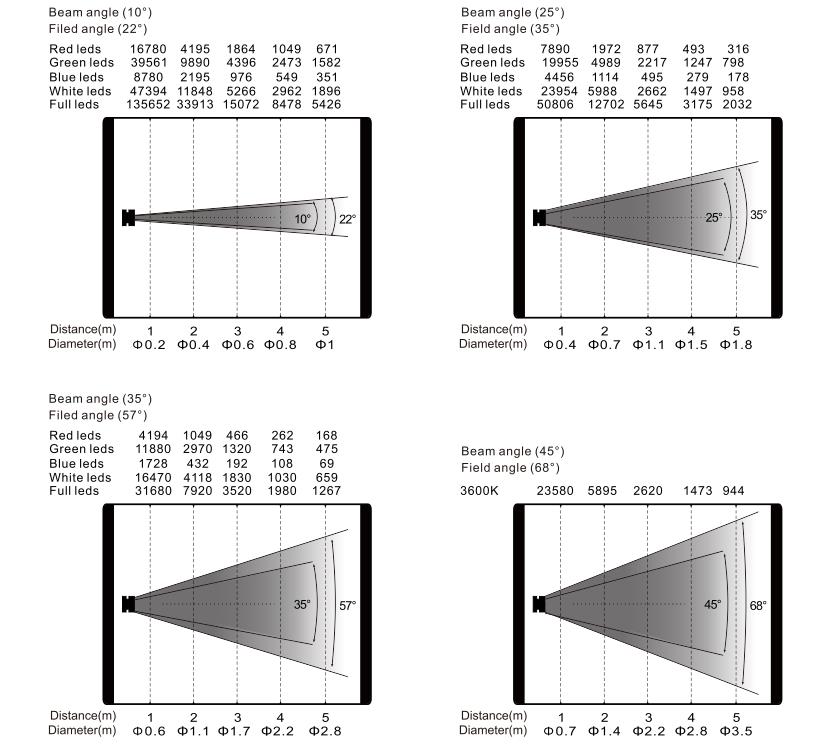

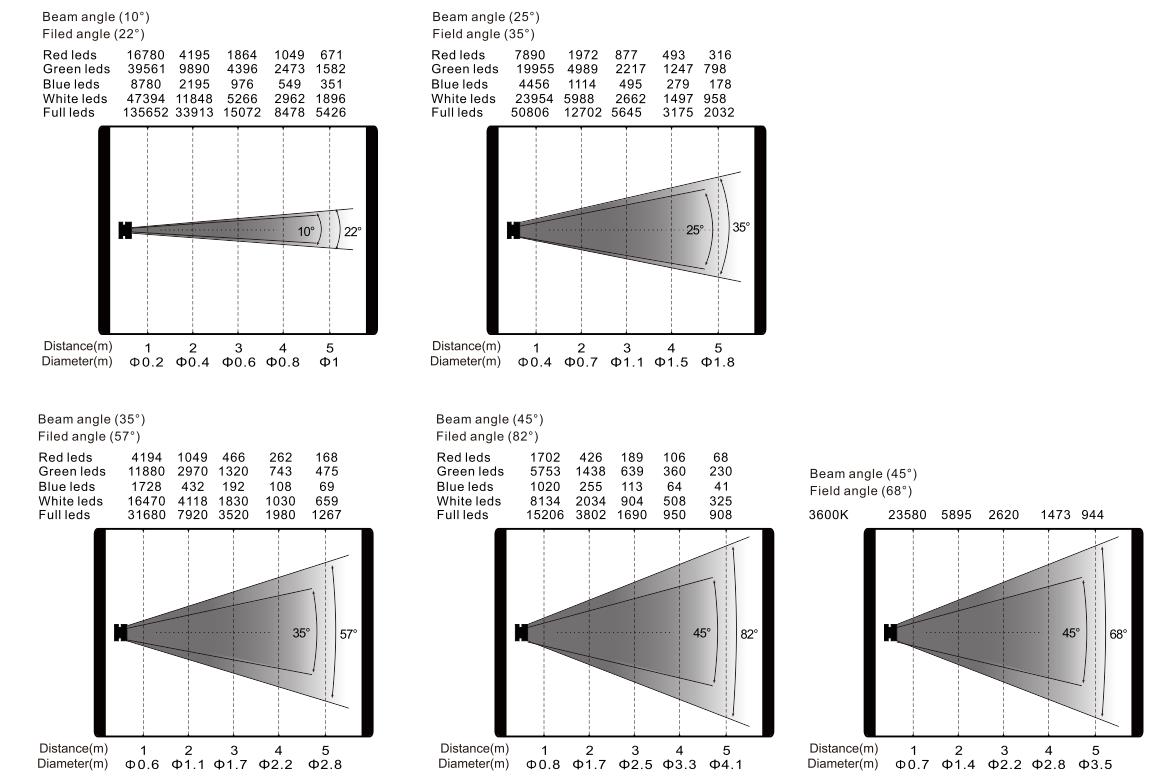

- Photometrics
