GS-Z19
- Specification
Optical system
Source: 19x20W RGBW LED
Light source life expectancy：50,000 hours Average Light Source Life*
CRI: Standard version ≥ 70; Optional high CRI version
RGBW color mixing
Zoom range: 10°-25°(beam angle), 15°-40°(field angle)
Dimming: 0-100% linear dimming
Upgrade with software box
Remote reset DMX address and fixture by DMX
RDM protocol
AC100-240V, 50/60Hz
Maximum input power: 300W
Product dimension: 336x269x360mm
Ta: -20℃ to +45℃
Cooling: Fan cooling
Housing material: anodized die cast aluminum
Finish: Gray(RAL9006),Black(RAL9005)
Mounting: Laid horizontally, hung up
Optional electronic accessory
Plug,leader cable,cable junction box
*Testing conditions in the lab may differ based on various factors.
Source: 19x20W RGBW LED
Light source life expectancy：50,000 hours Average Light Source Life*
CRI: Standard version ≥ 70; Optional high CRI version
Fixture output: ≥5200lm
RGBW color mixing
Color temperature linear: 2700K to 8000K
Zoom range: 10°-25°(beam angle), 15°-40°(field angle)
Dimming: 0-100% linear dimming
Ring control
IK08，IP66，Class I
Upgrade with software box
Remote reset DMX address and fixture by DMX
DMX channel: 7/11/20CH
RDM protocol
DMX512
AC100-240V, 50/60Hz
Maximum input power: 300W
Power supply: Built-in power supply
Product dimension: 336x269x360mm
Net weight: 8kg
Ta: -20℃ to +45℃
Anti-condensation system: optional
Cooling: Fan cooling
Compliance: CE,ROHS
Housing material: anodized die cast aluminum
Finish: Gray(RAL9006),Black(RAL9005)
Mounting: Laid horizontally, hung up
Optional electronic accessory
Plug,leader cable,cable junction box
*Testing conditions in the lab may differ based on various factors.
Errors and omissions are possible. All specifications are subject for change without prior notice.

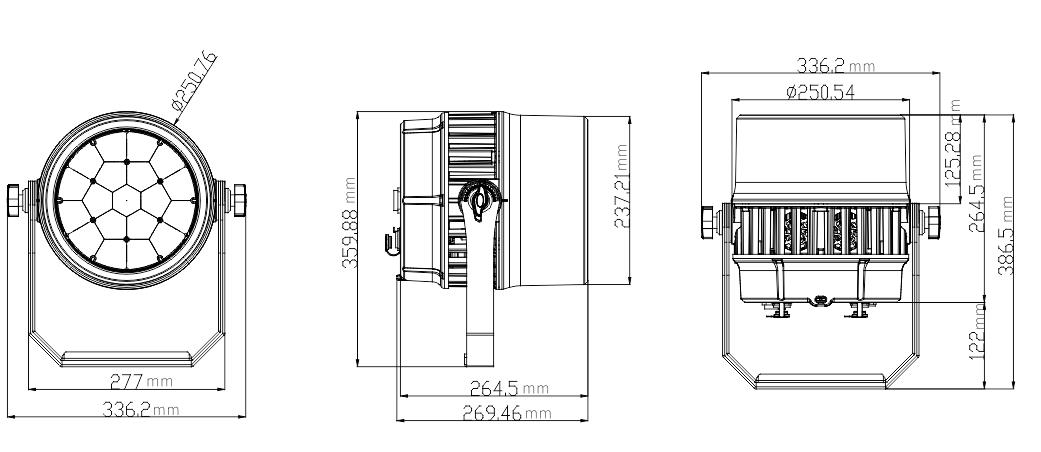

- Dimensions

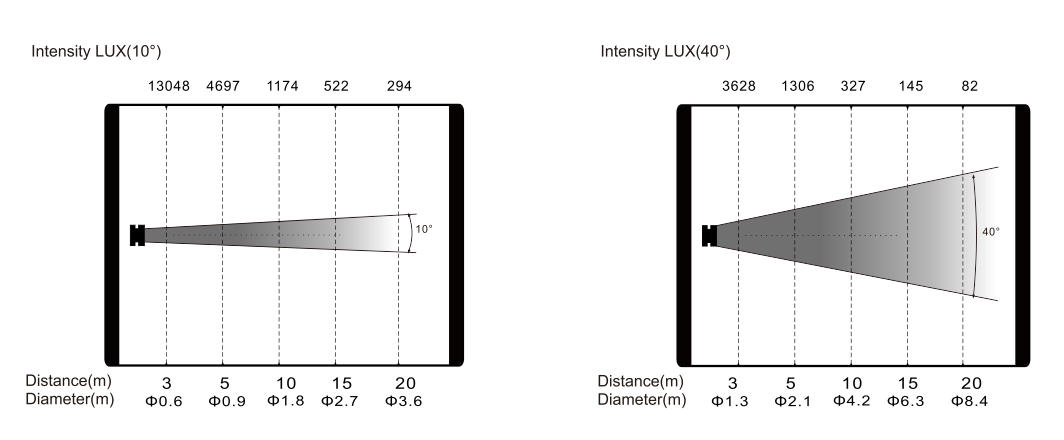

- Photometrics
