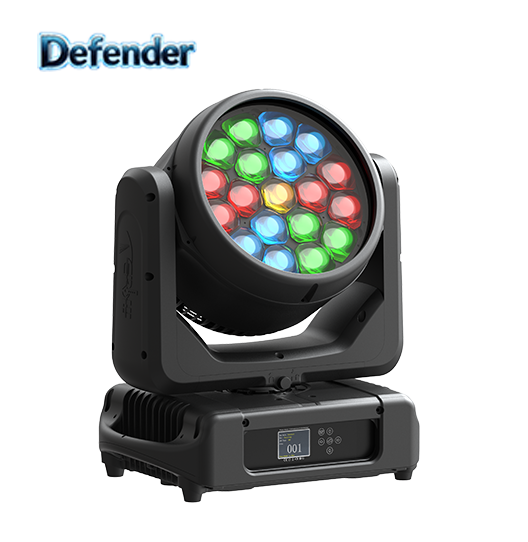

GLW1940 IP
- Specification
Optical system
Source: 19x40W RGBL LED (optional RGBW or RGBA )
"Light source life expectancy:50,000 hours Average Light Source Life*
*Testing conditions in the lab may differ based on various factors."
Movement
Pan: 540°(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning
Color system
RGBL color mixing
Color temperature linear: 2700K to 8000K
Effects
Zoom range: 4.5°-55°
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Pixel Control
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different cameras' linearity
Refresh rate: 900Hz-25,000Hz
Protection rating
IP66
Display
Battery operated for fast addressing,45 seconds standby auto lock
Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of light source and fixture
2 Control channel modes: 25/95CH
Auto thermal protection circuit
Control
Input signal isolation
Optional Art-Net control
RDM protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 850W
Dimension and weight
Product dimension: 270x395x472mm
Net weight: 17.5kg
Source: 19x40W RGBL LED (optional RGBW or RGBA )
"Light source life expectancy:50,000 hours Average Light Source Life*
*Testing conditions in the lab may differ based on various factors."
Movement
Pan: 540°(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning
Color system
RGBL color mixing
Color temperature linear: 2700K to 8000K
Effects
Zoom range: 4.5°-55°
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Pixel Control
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different cameras' linearity
Refresh rate: 900Hz-25,000Hz
Protection rating
IP66
Display
Battery operated for fast addressing,45 seconds standby auto lock
Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of light source and fixture
2 Control channel modes: 25/95CH
Auto thermal protection circuit
Control
Input signal isolation
Optional Art-Net control
RDM protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 850W
Dimension and weight
Product dimension: 270x395x472mm
Net weight: 17.5kg
Errors and omissions are possible. All specifications are subject for change without prior notice.
- Dimensions

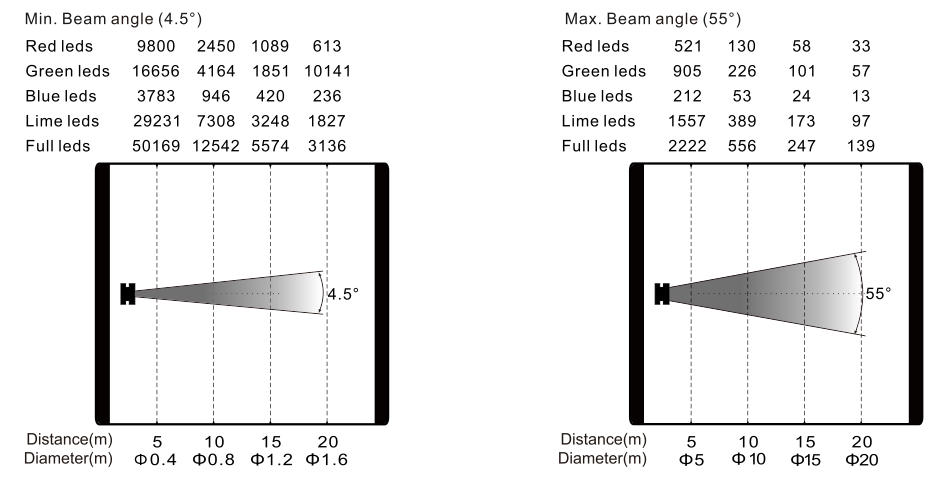

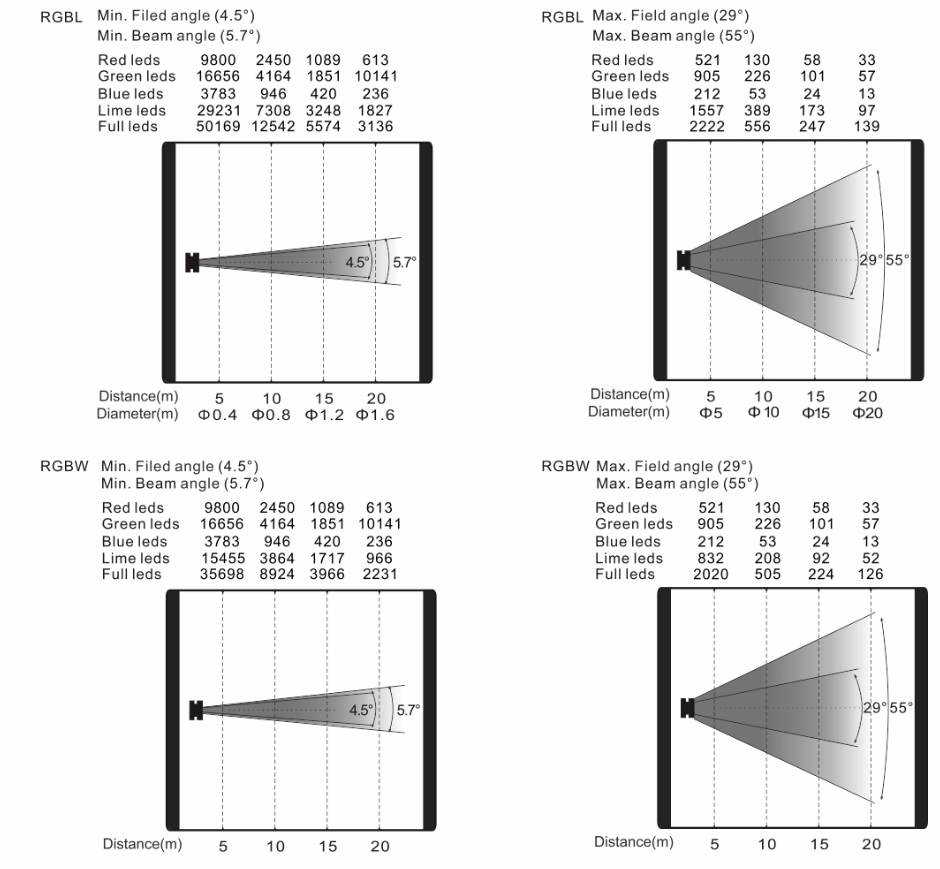

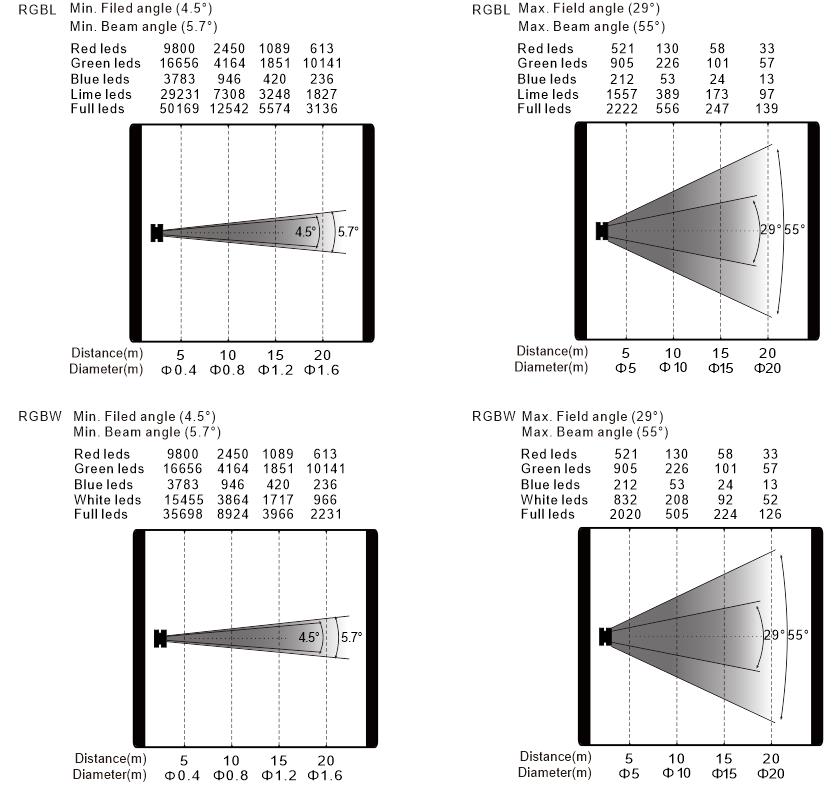

- Photometrics
