Optical system
Source: Philips MSD Platinum 19 R LL, 420W
Fixture CT：7200K
Light source life expectancy：5000 hours Average Light Source Life*
*Testing conditions in the lab may differ based on various factors.

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto pan/ tilt repositioning

Color system
CMY color mixing
1 color wheel：14 dichroic filters + open , indexable, split color effect, rainbow effect

Gobo system
1 Static gobo wheel:15 gobos + open

Effect
Motorized focus

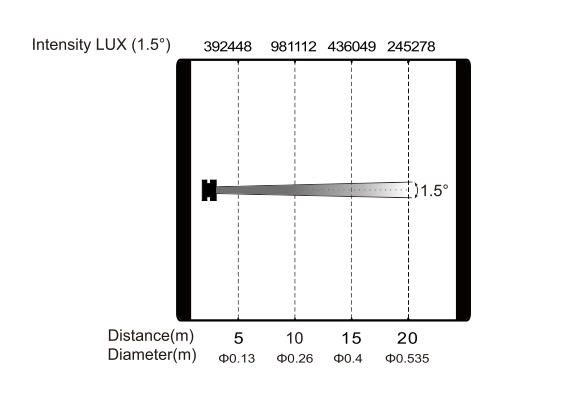

Beam angle: 1.6°
2 Rotating prism: 4-facet linear prism + 8-facet circular prism, indexable, rotating in both directions，16 prism macros
Frost
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse

Protection rating
IP66

Display
Display:  optional with rechargeable battery, locked automatically after standby for 15 seconds
Pan/tilt disengage (hold Left and Right arrow buttons), support to complete the reset detection in the flight case

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
2 Control channel modes: 20/29 CH
Auto thermal protection

Control
Input signal isolation
RDM protocol

Electric parameter
AC100-240V,  50/60Hz
Power consumption: 630W

Dimension and weight
Product dimension: 395x270x696mm
Packing dimension (carton): 808x475x385mm
Net weight: 25.82kg
Gross weight (carton): 30.02kg
