T400C
- Specification
Optical system
Source: 500W RGBAL LED Engine
Total LED Power: 500W
LED Power Draw: 400W
Fixture CT: 2200K-8000K
Light source life expectancy:50,000 hours Average Light Source Life*
CRI: up to 95
Fixture Output: 9,000lm
Beam angle: 15°-36°;5°,10° optional
Effects
Dimming: 0-100% linear dimming
Strobe: Up tp 25Hz
Gamma: 2.0, 2.2, 2.4, 2.6,2.8,to fit different visual linearity requirements
Refresh rate: 1,000Hz,25,000Hz, 32,000Hz
Protection rating
IP20
Software
Upgrade with DMX, super quiet fan control
2 Control channel modes:11/17CH
Control
RDM Protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 450W
Dimension and weight
Product dimension: 328x439x736mm
Packing dimension (carton): 495x345x315mm
Net weight: 9 kg (just body, not include len)
Gross weight (carton): 11 kg
*Testing conditions in the lab may differ based on various factors.
Source: 500W RGBAL LED Engine
Total LED Power: 500W
LED Power Draw: 400W
Fixture CT: 2200K-8000K
Light source life expectancy:50,000 hours Average Light Source Life*
CRI: up to 95
Fixture Output: 9,000lm
Beam angle: 15°-36°;5°,10° optional
Effects
Dimming: 0-100% linear dimming
Strobe: Up tp 25Hz
Gamma: 2.0, 2.2, 2.4, 2.6,2.8,to fit different visual linearity requirements
Refresh rate: 1,000Hz,25,000Hz, 32,000Hz
Protection rating
IP20
Software
Upgrade with DMX, super quiet fan control
2 Control channel modes:11/17CH
Control
RDM Protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 450W
Dimension and weight
Product dimension: 328x439x736mm
Packing dimension (carton): 495x345x315mm
Net weight: 9 kg (just body, not include len)
Gross weight (carton): 11 kg
*Testing conditions in the lab may differ based on various factors.
Errors and omissions are possible. All specifications are subject for change without prior notice.

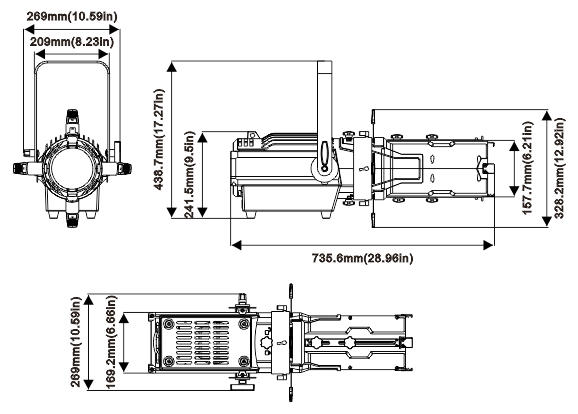

- Dimensions

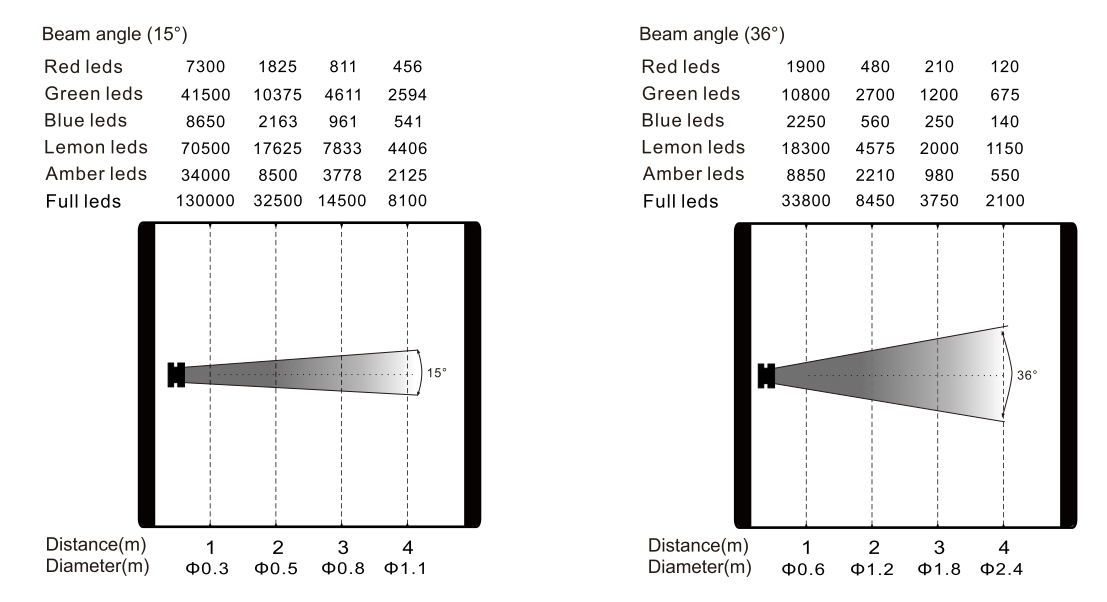

- Photometrics
