Optical system
Source: 19 x 20W RGBW LED
Fixture CT: 2700K-10000K
Light source life expectancy：50,000 hours  Average Light Source Life*
CRI: ≥75

Fixture output: 4,600lm

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)

Auto X/Y repositioning

Color system
RGBW color mixing

Color temperature presets: 2700K, 3200K, 4300K, 5600K, 6500K, 8000K

Effects

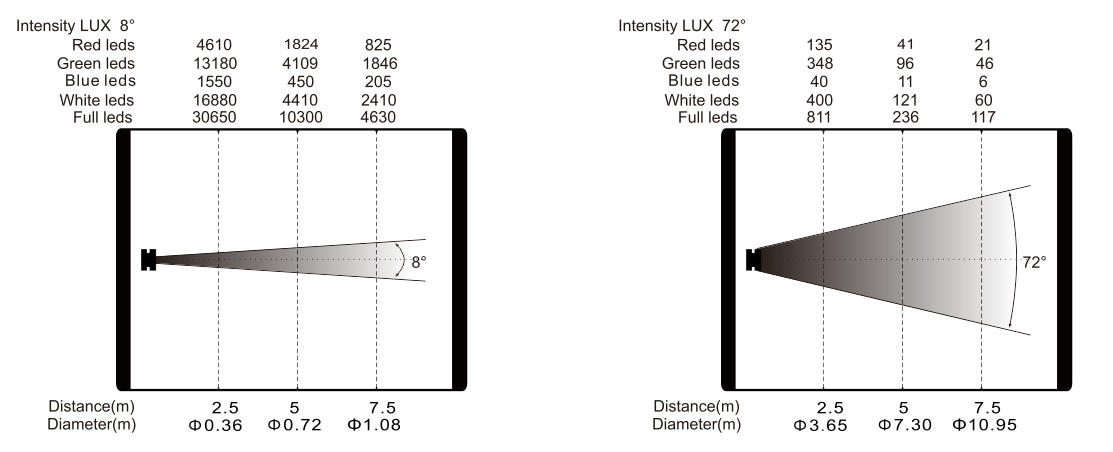

Zoom range: 8°-72°（beam angle)
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different visual linearity requirements
Refresh rate: 900Hz-25,000Hz

Pixel Control

Protection rating

IP20

Display
Battery operated for fast addressing,15 seconds standby auto lock

Pan/tilt disengage (hold MENU and ENTER button)

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 17/35/93CH

Auto thermal protection circuit

Control
Input signal isolation
Optional installed wireless receiver
Optional Art-Net control

RDM protocol

Electric parameter
AC100-240V, 50/60Hz

Power: 400W

Dimension and weight
Product dimension: 370x246x502mm
Packing dimension (carton): 455x365x595mm
Net weight: 13kg
Gross weight (carton): 17kg

*Testing conditions in the lab may differ based on various factors.
