Optical system
Source: 7x 60W RGBW LED
Light source life expectancy：20,000 hours  Average Light Source Life*

Fixture output: 8,000lm

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)

Auto X/Y repositioning

Color system
RGBW color mixing,color temperature linear: 2700K to 8000K

Color temperature presets: 2700K, 3200K, 4300K, 5600K, 6500K, 8000K

Effects

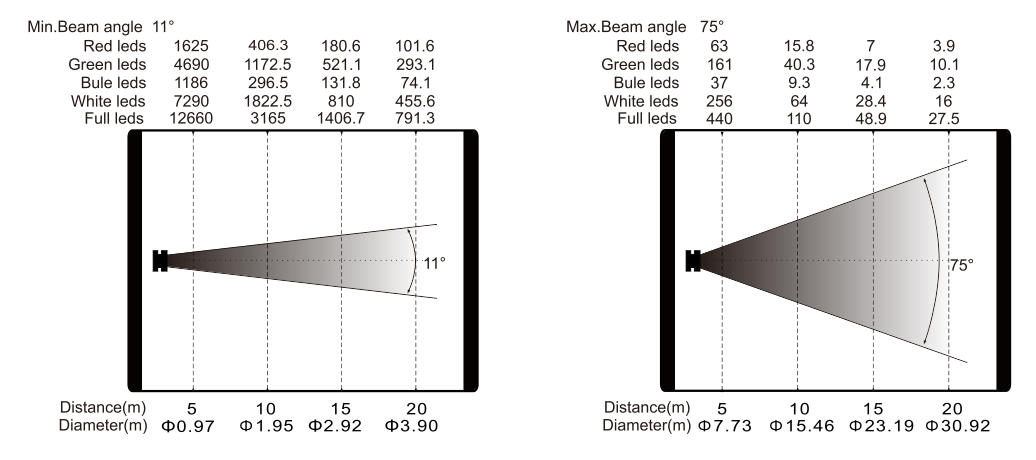

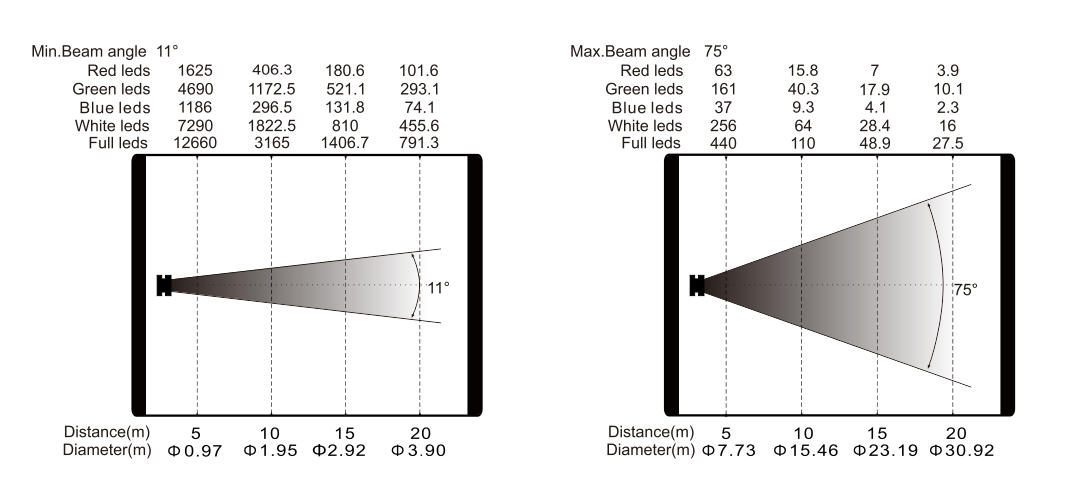

Zoom range: 11°- 75°(beam angle)
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Pixel control
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different visual linearity requirements

Refresh rate: 900Hz - 1200Hz

Protection rating

IP20

Display
Battery operated for fast addressing, 15 seconds standby auto lock

Pan/tilt disengage (hold Left arrow and Right arrow buttons)

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source

3 Control channel modes: 24/18/46CH

Control
Input signal isolation
Optional installed wireless receiver
Optional Art-Net control

RDM protocol

Electric parameter
AC100-240V, 50/60Hz

Power: 700W

Dimension and weight
Product dimension: 350x225x448mm
Packing dimension (carton): 430x370x605mm
Net weight: 11kg
Gross weight (carton): 19kg

*Testing conditions in the lab may differ based on various factors.
