GL3WP
- Specification
Optical system
Source: 380W White LED
Fixture CT: 6000K
Light source life expectancy:20,000h
CRI: up to 95
Fixture Output: 15800lm (Plano convex glass lens), 13800lm (Fresnel)
Optional lens: Plano convex glass lens or Fresnel
Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning
Color system
CMY+CTO color mixing
1 Color wheel: 7 dichroic filters +open
Effects
Motorized focus
Zoom range: 17°- 63°
Frost
4 individually positionable blades with ±45°rotation of the complete framing system
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Protection rating
IP20
Display
Battery operated for fast addressing,15 seconds standby auto lock
Pan/tilt disengage (hold Left arrow and Right arrow buttons)
Software
Upgrade with DMX and USB as optional
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 26/28/41CH
Control
Input signal isolation
Auto thermal protection circuit
Optional installed wireless receiver
Art-Net control
RDM protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 600W

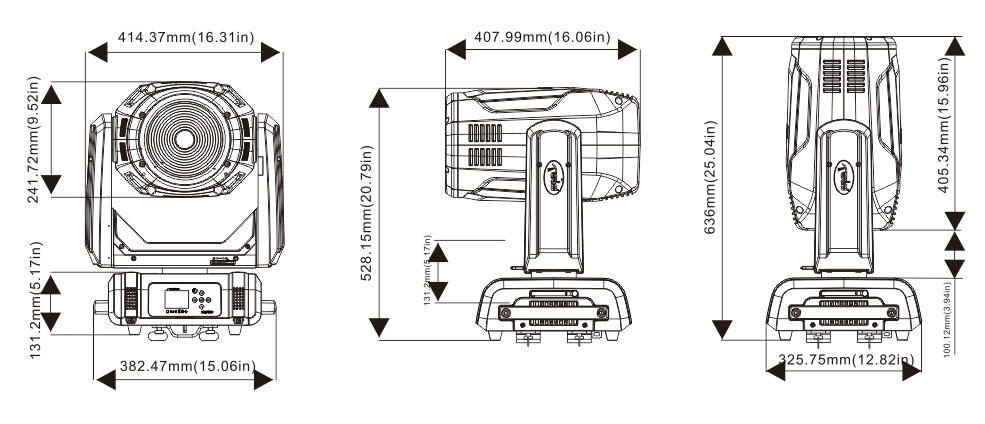

Dimension and weight
Product dimension: 407x326x677mm
Packing dimension (double flightcase): 965x575x930mm
Net weight: 25kg
Gross weight (double flightcase): 104.5kg
Source: 380W White LED
Fixture CT: 6000K
Light source life expectancy:20,000h
CRI: up to 95
Fixture Output: 15800lm (Plano convex glass lens), 13800lm (Fresnel)
Optional lens: Plano convex glass lens or Fresnel
Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning
Color system
CMY+CTO color mixing
1 Color wheel: 7 dichroic filters +open
Effects
Motorized focus
Zoom range: 17°- 63°
Frost
4 individually positionable blades with ±45°rotation of the complete framing system
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
Protection rating
IP20
Display
Battery operated for fast addressing,15 seconds standby auto lock
Pan/tilt disengage (hold Left arrow and Right arrow buttons)
Software
Upgrade with DMX and USB as optional
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
3 Control channel modes: 26/28/41CH
Control
Input signal isolation
Auto thermal protection circuit
Optional installed wireless receiver
Art-Net control
RDM protocol
Electric parameter
AC100-240V, 50/60Hz
Power: 600W
Dimension and weight
Product dimension: 407x326x677mm
Packing dimension (double flightcase): 965x575x930mm
Net weight: 25kg
Gross weight (double flightcase): 104.5kg
Errors and omissions are possible. All specifications are subject for change without prior notice.
- Related materials and tools to download
-
Library GL3WP(grandMA2) RAR 0.01MB GL3WP(Avolites D4) RAR 0.02MB GL3WP(Avolites R20) RAR 0.01MB GL3WP(Compulite Vector series) RAR 0.39MB GL3WP(grandMA3 GDTF) RAR 0.18MB GL3WP(grandMA3 GDTF) RAR 0.18MB
-
CAD Drawing 3D FILE 0.01MB GL3WP_Dimensional Drawings.dwg 2D file DWG 2.02MB
