Optical system
Source: 1800W 6-color full-spectrum LED module
Light source life expectancy：20,000 hours Average Light Source Life*
CRI: up to 99； R9: up to 99； R13: up to 98； TLCI：99； TM-30-18：Rg/ Rf 104/95； Hue≤0.005； Tint：±0.003； CQS≥ 95

Fixture Output: 35000lm

Movement
Pan: 540°(16 bit)
Tilt: 270°(16 bit)

Auto X/Y repositioning

Color system
RGBACL six-color natural color mixing
Linear CMY effect
Linear color temperature: 1800K - 10000K
1 Color wheel: 5 dichroic filters + open

Color Management System

Gobo system

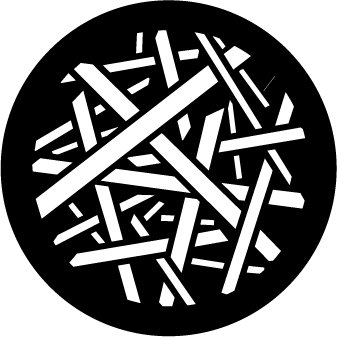

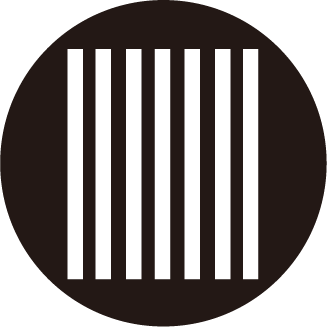

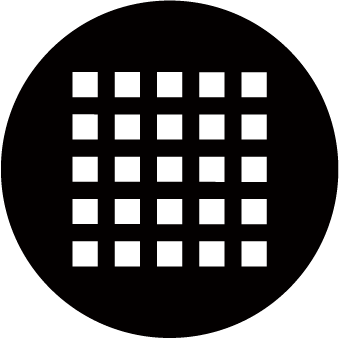

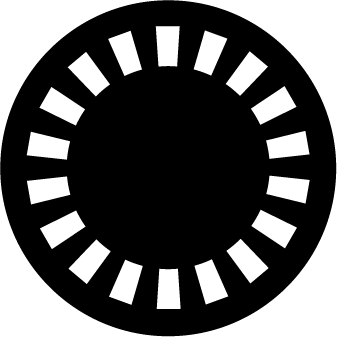

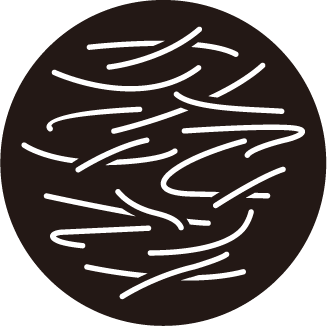

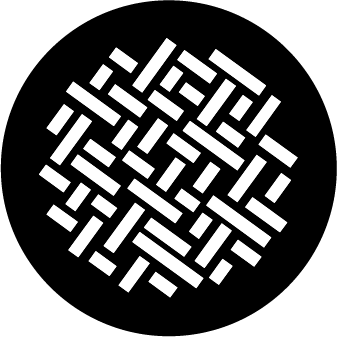

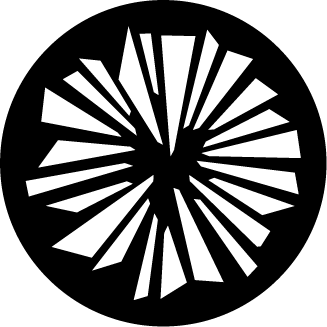

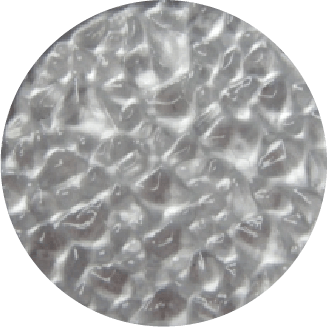

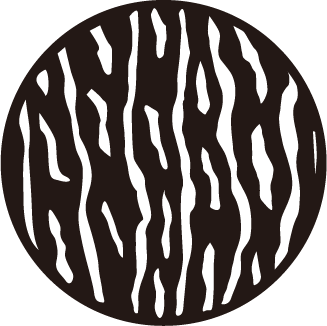

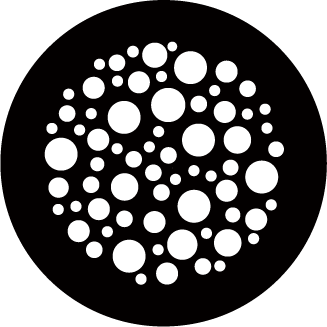

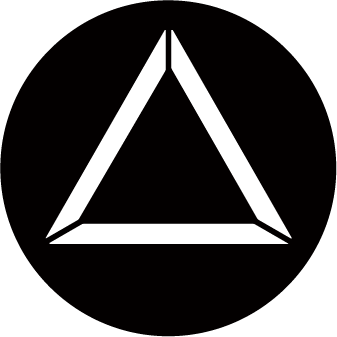

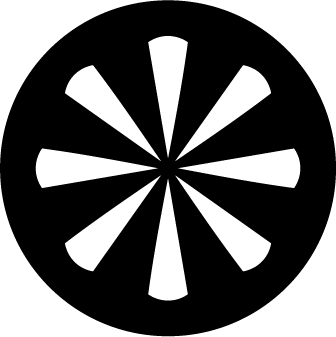

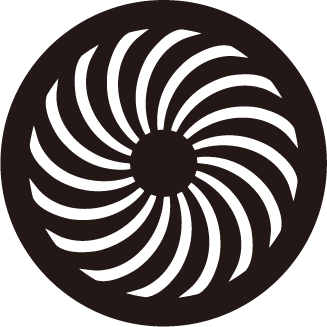

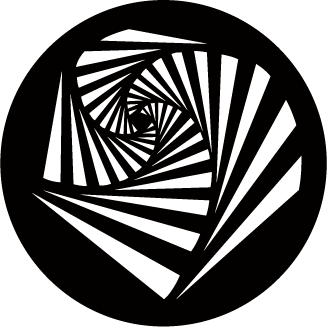

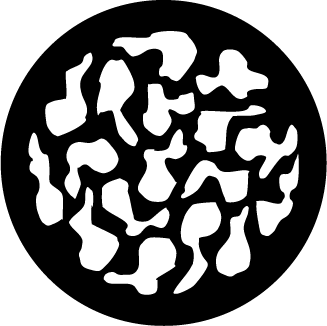

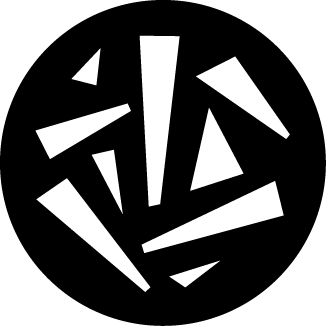

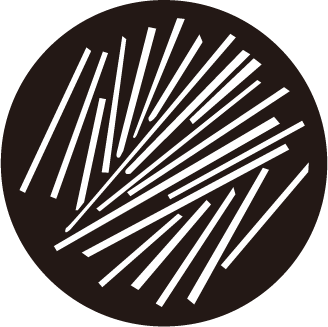

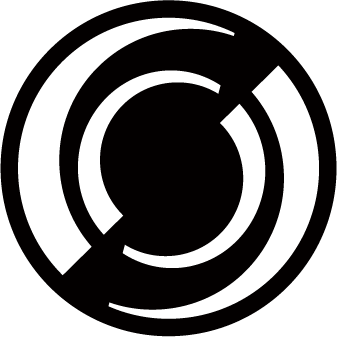

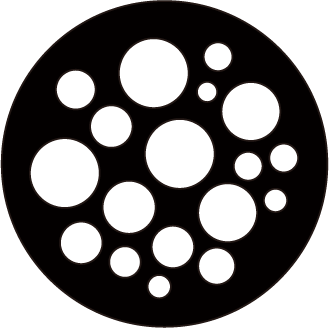

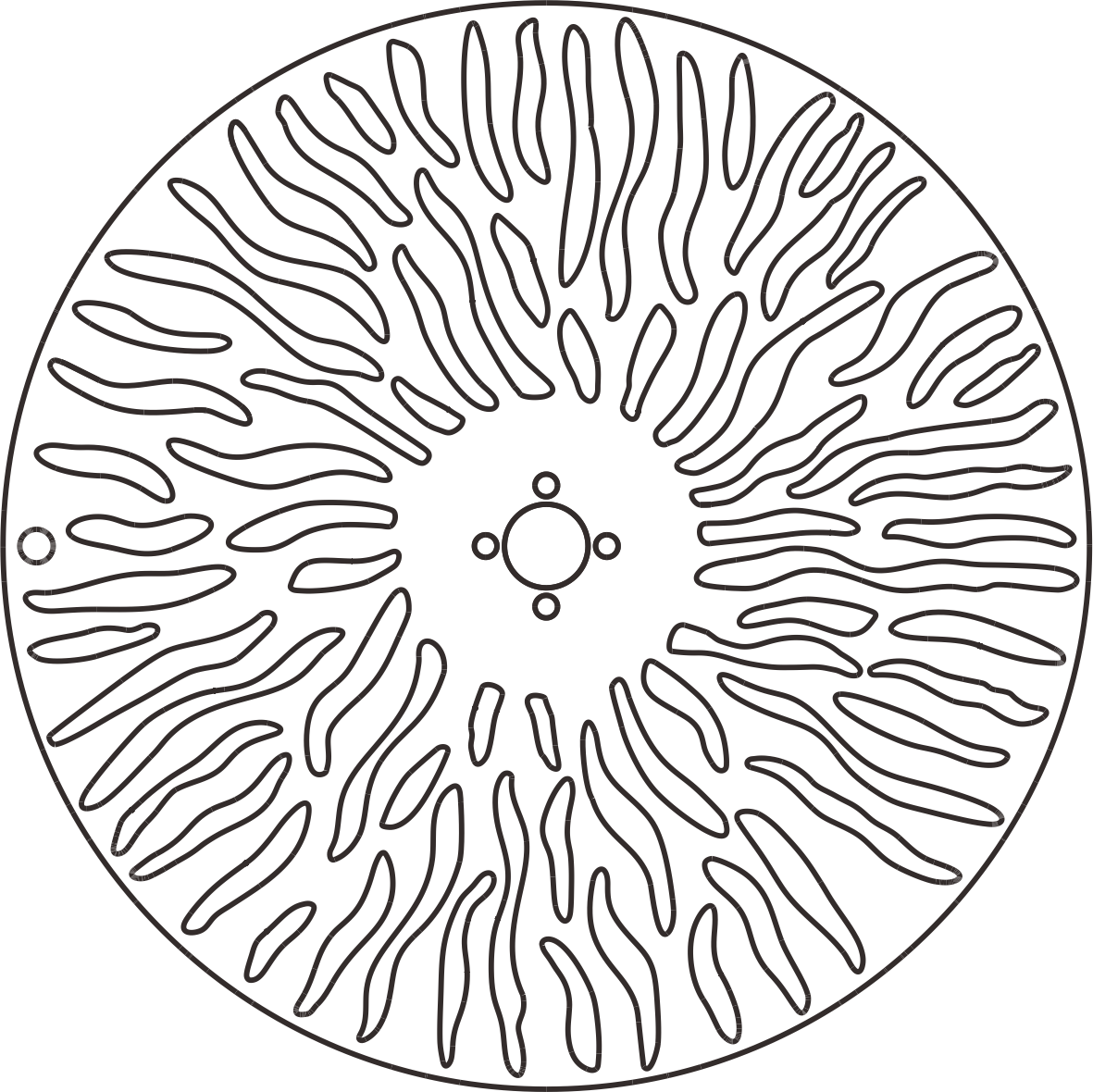

2 Rotating gobo wheel: each with 7 interchangeable gobos+ open. Gobo OD: 30mm
1 Static gobo wheel: 5 gobos + open

1 Animation wheel

Effects
Motorized focus

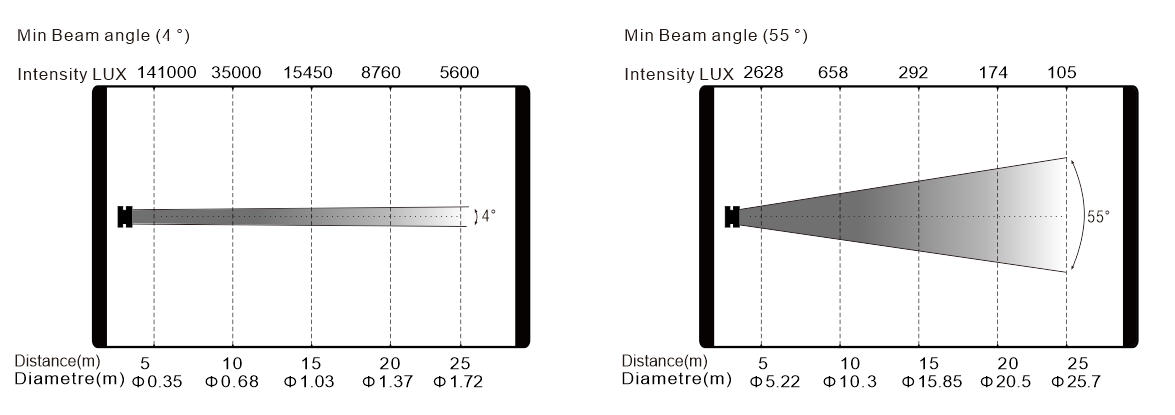

Zoom range: 4°-55°
Auto focus
1 rotating prism wheels: 4 linear + 8 facet. Dynamic prism morph to produce various beam and kaleidoscope effects.
Light frost, heavy frost
Framing: 4 individually positionable blades with ±90°rotation of the complete framing system
Iris
Dimming: 0-100% linear dimming
Strobe: electronic with various speed
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different camera's linearity

Refresh rate: 900Hz-25000Hz

Protection rating

IP66

Display
Battery operated for fast addressing,45 seconds standby auto lock

Pan/ Tilt disengage (hold LEFT and RIGHT button)

Software
Upgrade with DMX
Remote reset DMX address, fixture reset by DMX
Run time of light source and fixture
2 Control channel modes: 40/62CH

Auto thermal protection circuit

Control
Input signal isolation
RDM protocol

Cloud platform control: Optional

Electric parameter
AC200-240V, 50/60Hz

Power: 2000W

Dimension and weight

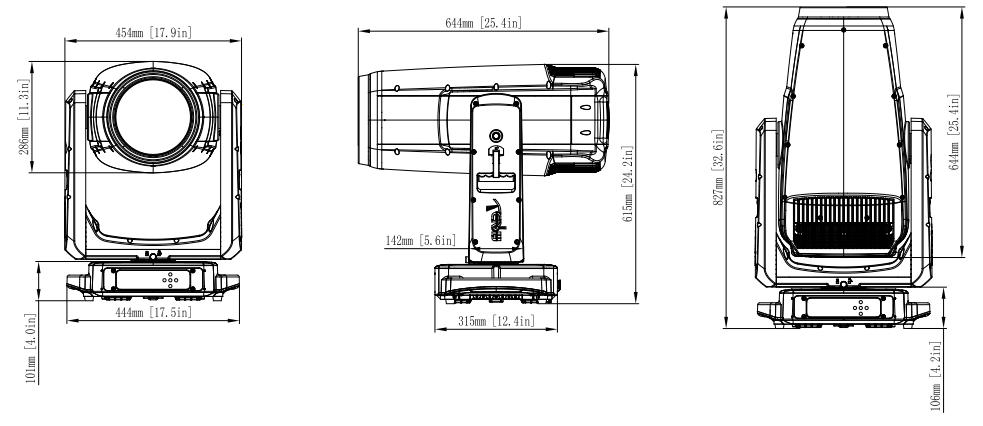

Product dimension: 315x454x827mm
Net weight: 44 kg

*Testing conditions in the lab may differ based on various factors.
