Optical system
Source: Philips MSD Infinity, 420W
Fixture CT：6700K
Light source life expectancy：5000 hours service life at full power; 8000 hours service life in entertainment mode (based on Golden Sea Laboratory data; actual performance may vary depending on the operating environment)*

Illuminance: up to 140000lux@20m

Movement
Pan: 540°/630°optional(16 bit)
Tilt: 270°(16 bit)

Auto pan/tilt repositioning

Color system
CMY color mixing

1 color wheel：14 dichroic filters + open, color effect, indexable, split color effect, rainbow effect

Gobo system

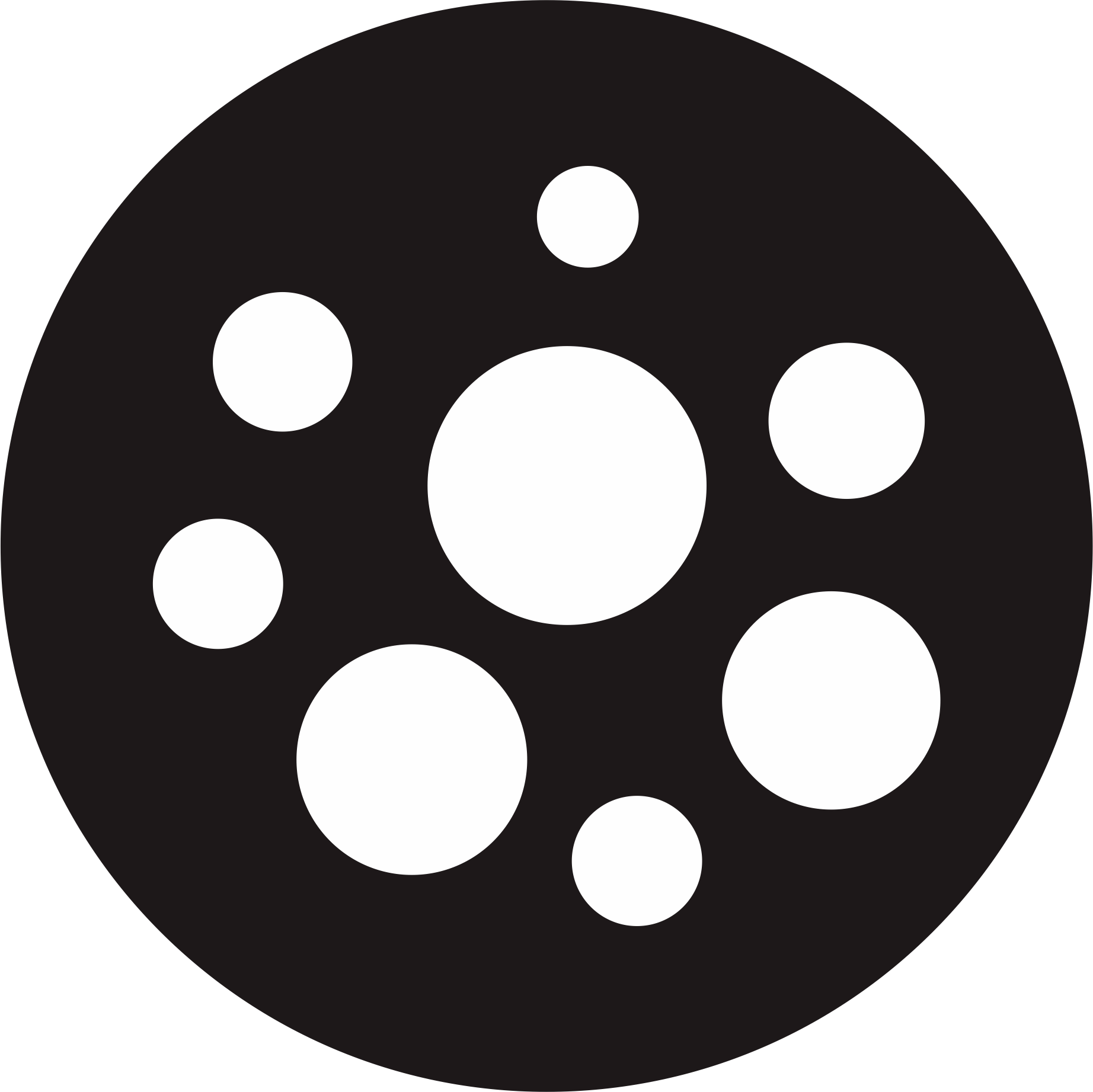

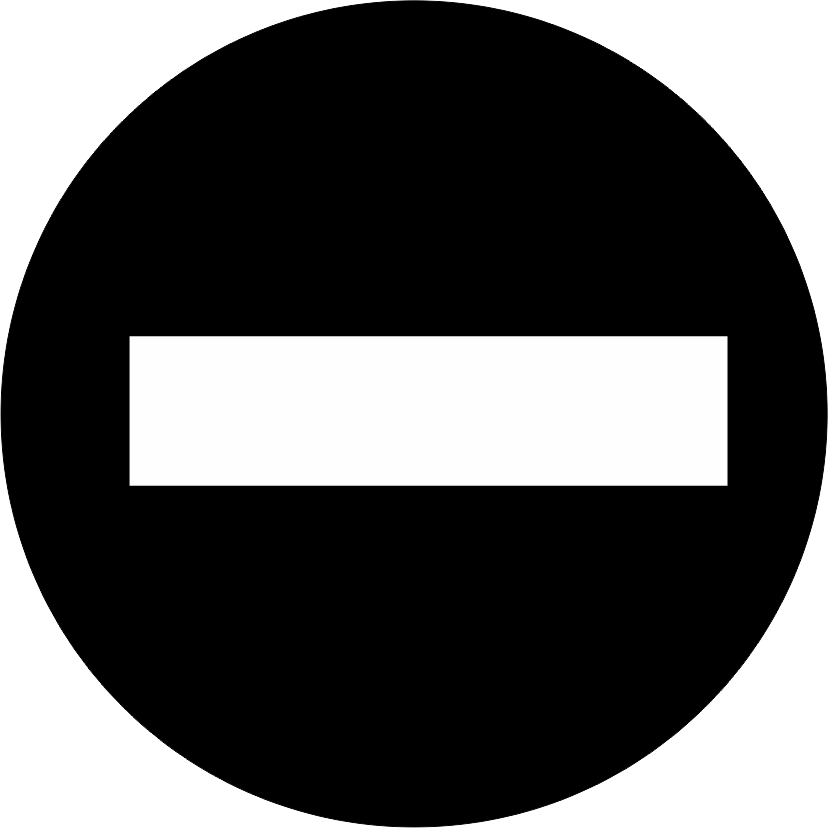

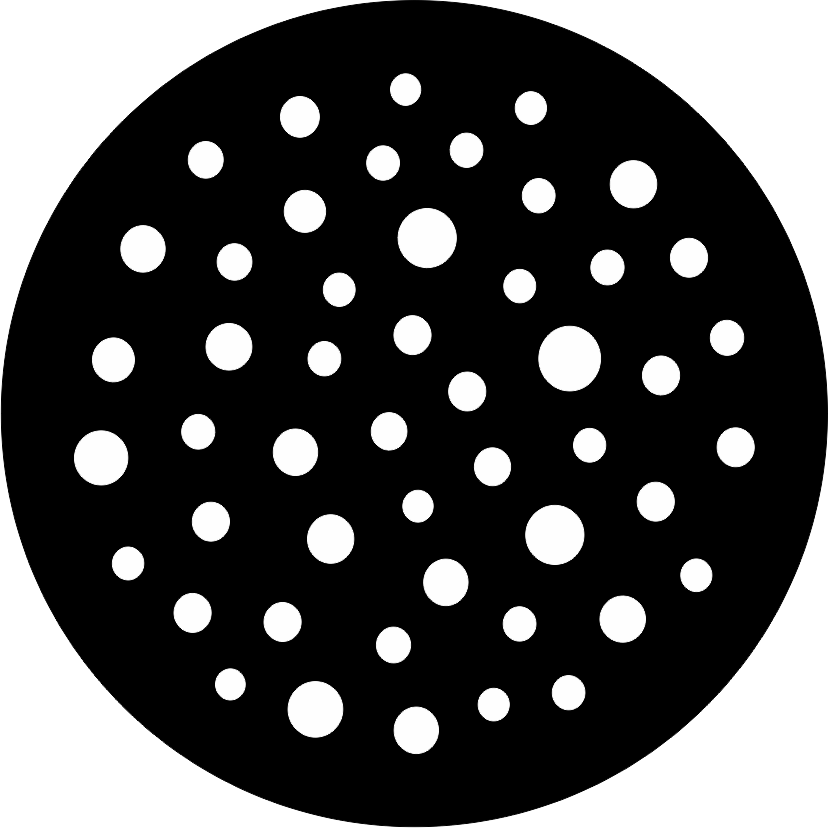

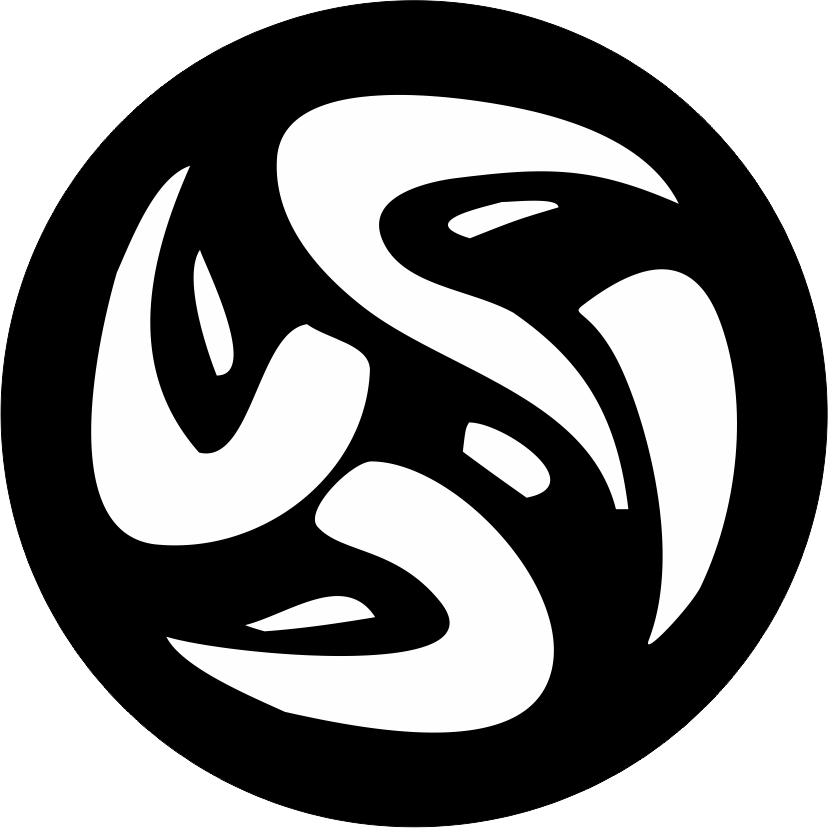

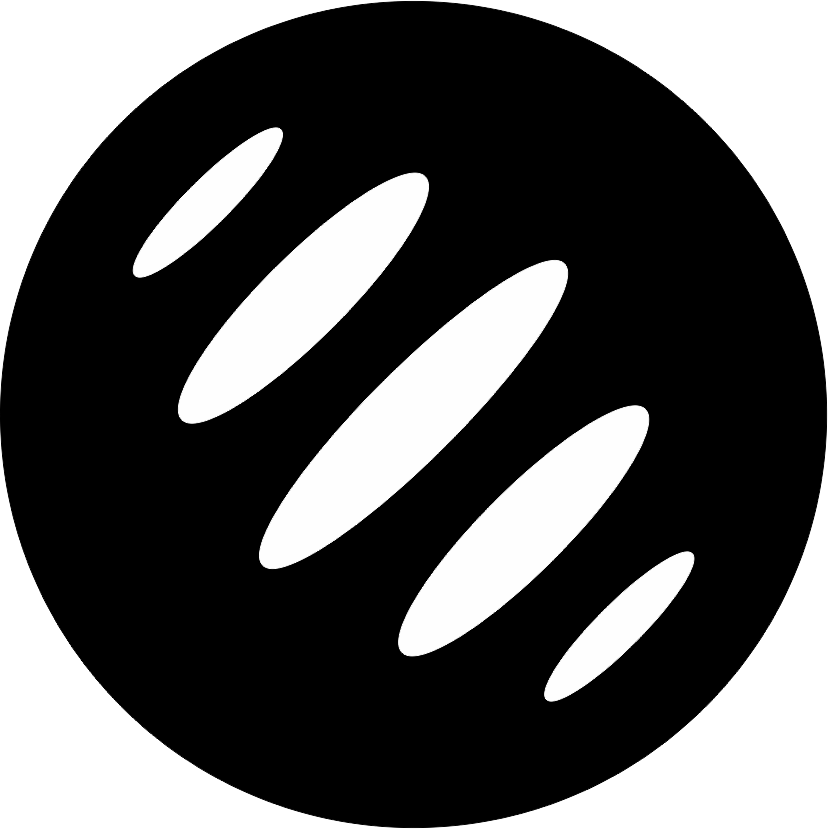

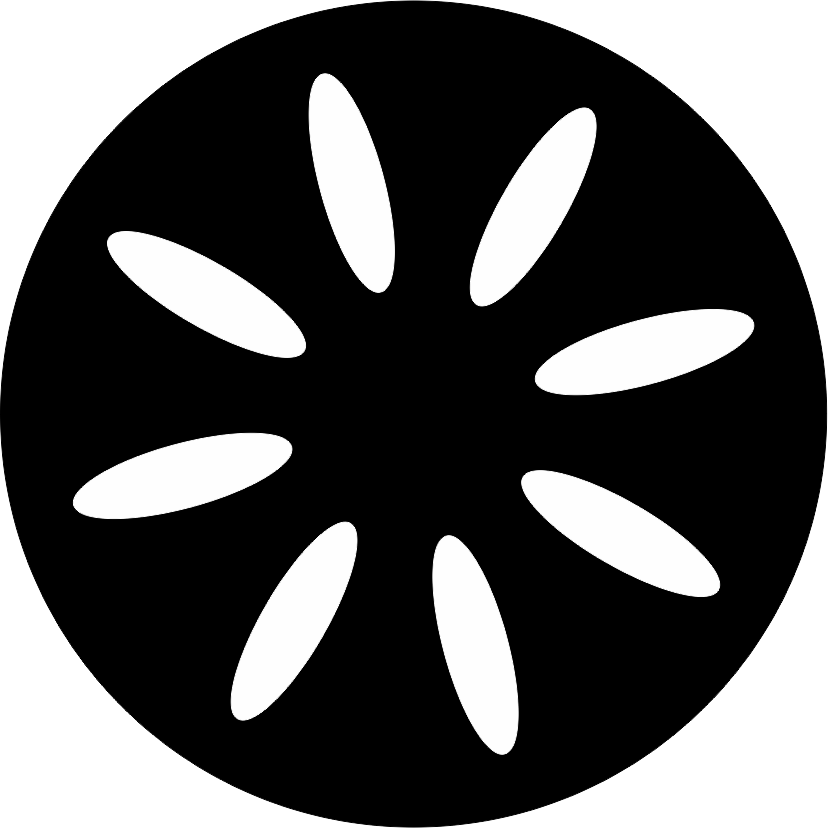

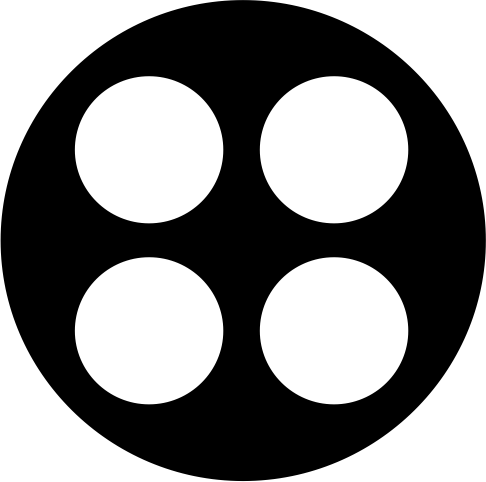

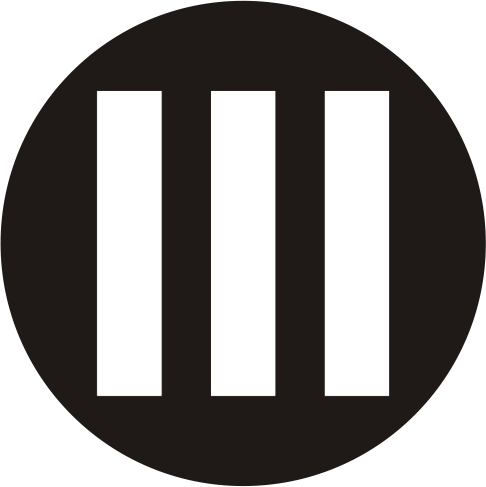

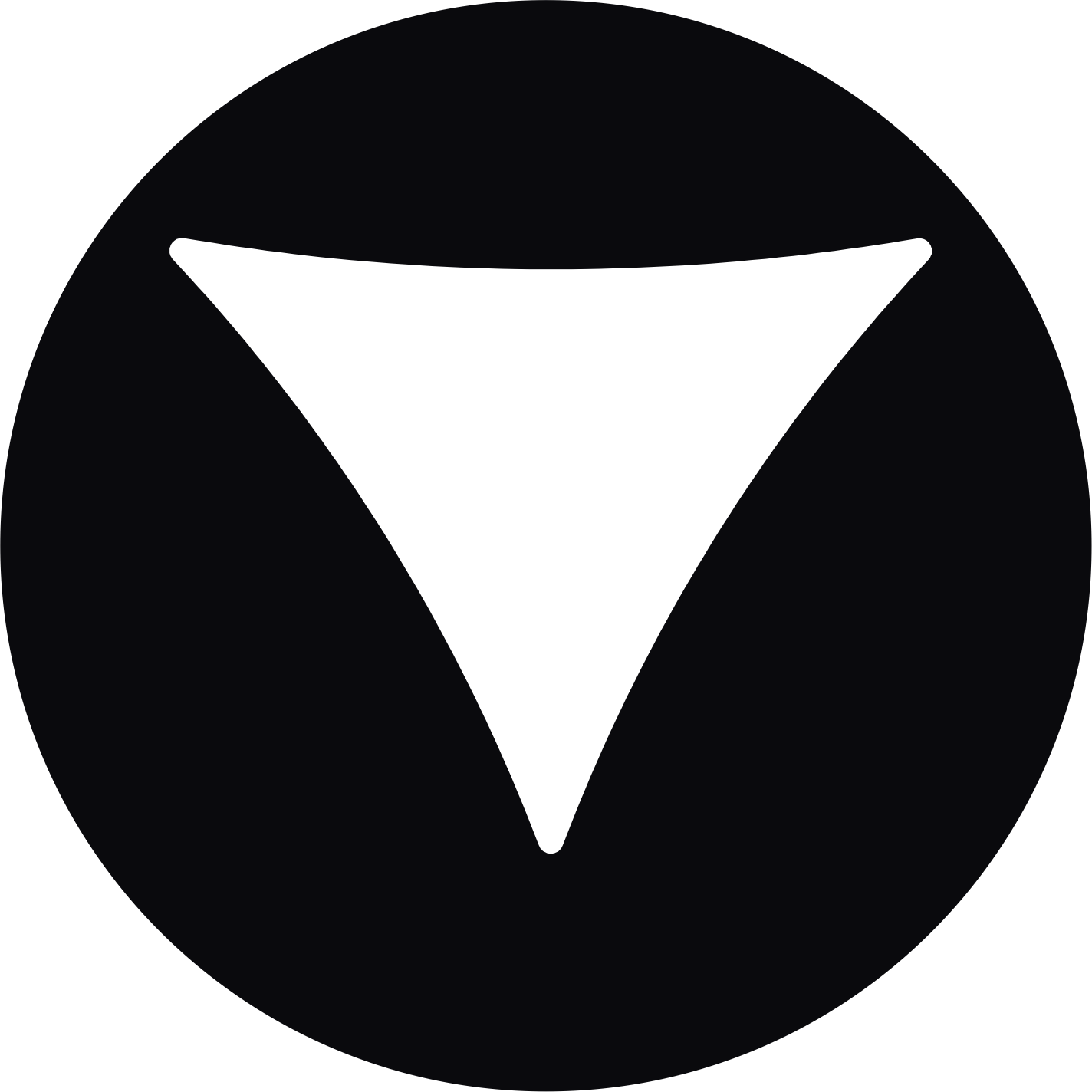

1 Rotating gobo wheel:8 interchangeable gobos + open. Gobo OD: 16.3mm

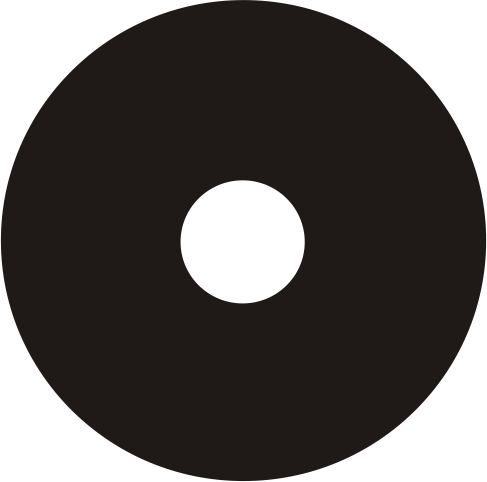

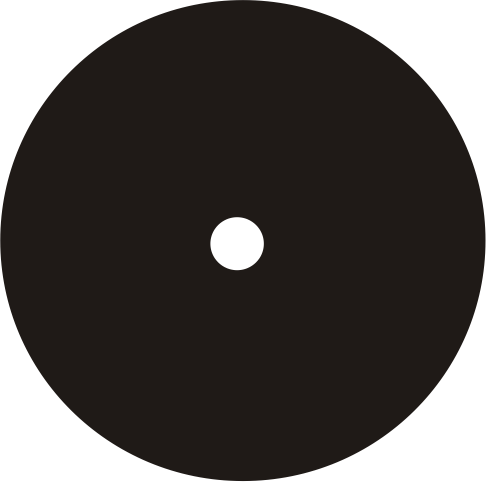

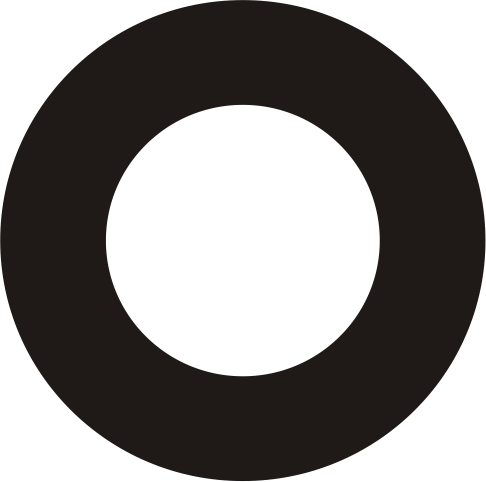

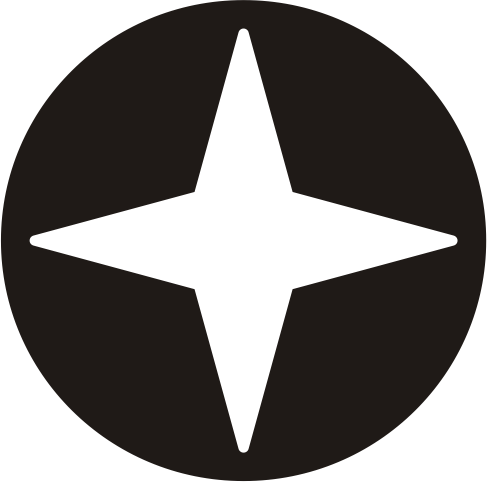

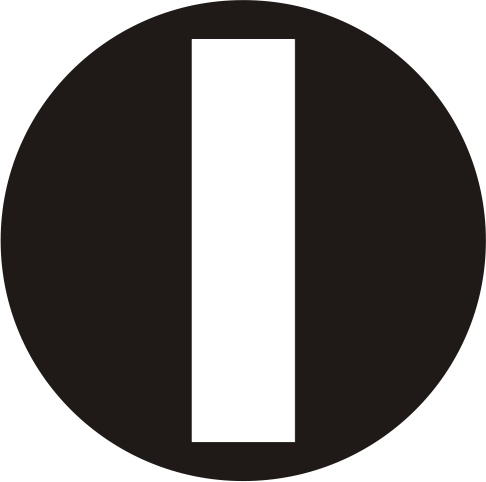

1 Static gobo wheel:14 gobos + open

Effect
Motorized focus

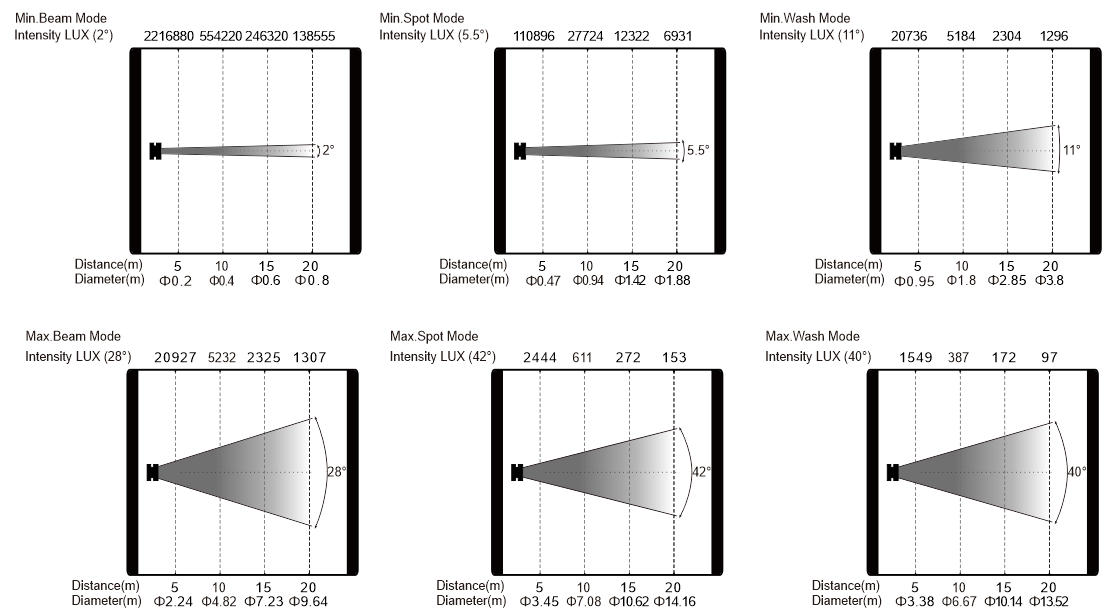

Zoom range: beam mode:2°-28°; spot mode: 5.5°-42°; wash mode: 11°-40°
Auto focus
2 Rotating prism: 4 linear prism + 8 facet prism, indexable, 16 prism Macros
Frost
Dimming: 0-100% linear dimming

Strobe: electronic, variable from 1-25Hz or pulse

Protection rating

IP66

Display
Display: without rechargeable battery (optional with rechargeable battery, locked automatically after standby for 15 seconds）

Pan/tilt disengage (hold Left and Right arrow buttons), support to complete the reset detection in the flight case

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
2 Control channel modes: 25/36 CH

Auto thermal protection circuit

Control
Input signal isolation

RDM protocol

Electric parameter
AC100-240V,  50/60Hz

Power consumption: 650W

Dimension and weight

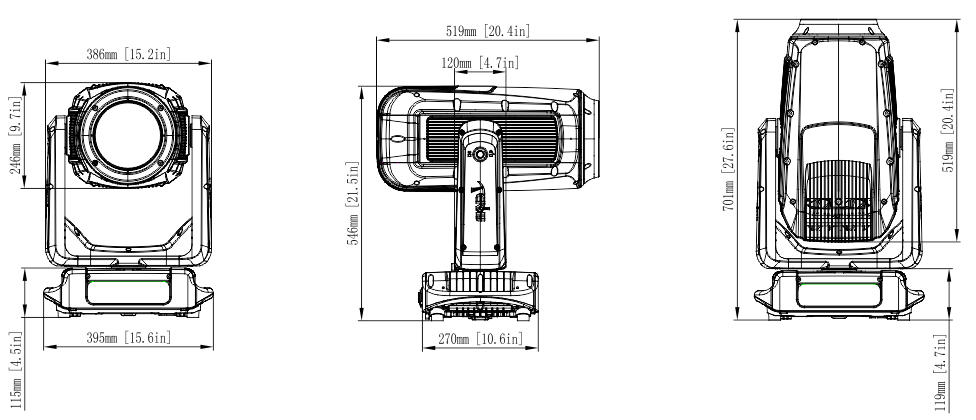

Product dimension: 395x270x701mm
Packing dimension (carton): 813x475x385mm
Net weight: 27 kg
Gross weight (carton): 31 kg

*Testing conditions in the lab may differ based on various factors.
