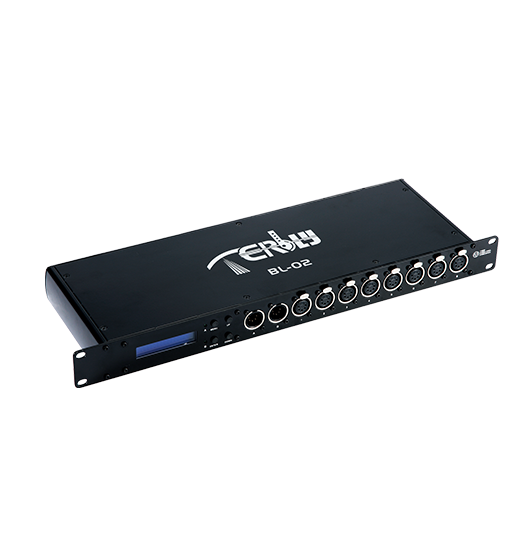

Peripheral Equipment and AccessoriesPeripheral Equipment and AccessoriesBL-02 Isolated Signal Amplifier
BL-02
- Specification
Simultaneously receives and processes two different signals, then amplifies and outputs them according to the DMX512 protocol.
Signals are input via two ports, A and B, and can be reconfigured into DMX512 standard signal channels, arranged either as 8 individual output ports or as two groups of 4 outputs; the device also features enhanced signal amplification.
The output signals are completely independent of each other, with each output port being fed by its own dedicated signal source, ensuring interference-free operation.
Each signal output port can be used individually or in combination, and even if a fault occurs in one output port, it will not affect the normal operation of the other output ports.
Available in two versions: 3-pin XLR and 5-pin XLR.
Blue and white LCD display
Power: 24VDC, 300mA / 5VDC, 3A
Packing dimensions（carton）：540x280x100mm
Net weight：2kg
Gross weight（carton）：3kg
Signals are input via two ports, A and B, and can be reconfigured into DMX512 standard signal channels, arranged either as 8 individual output ports or as two groups of 4 outputs; the device also features enhanced signal amplification.
The output signals are completely independent of each other, with each output port being fed by its own dedicated signal source, ensuring interference-free operation.
Each signal output port can be used individually or in combination, and even if a fault occurs in one output port, it will not affect the normal operation of the other output ports.
Available in two versions: 3-pin XLR and 5-pin XLR.
Blue and white LCD display
Power: 24VDC, 300mA / 5VDC, 3A
Packing dimensions（carton）：540x280x100mm
Net weight：2kg
Gross weight（carton）：3kg
Errors and omissions are possible. All specifications are subject for change without prior notice.
