Optical system
Source: laser 500W
Fixture CT: 8500K
Light source life expectancy：12,000 hours Average Light Source Life*
CRI: ≥70
Illuminance: ≥1,300,000lux@10m

Movement
Pan: 540°(16 bit)
Tilt: 270°(16 bit)
Auto X/Y repositioning

Color system
CMY+CTO color mixing
1 Color wheel: 23 dichroic filters + 1 quad color filters + open

Gobo system

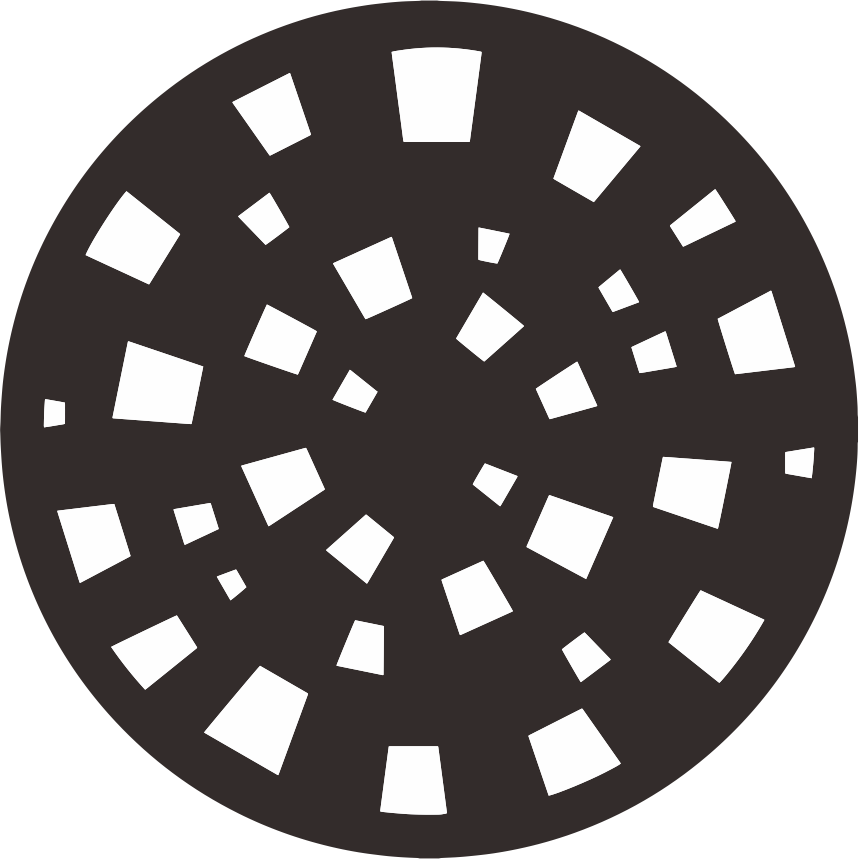

1 Rotating gobo wheel: 12 interchangeable gobos+ open. Gobo OD: 6.9mm
1 Static gobo wheel: 24 gobos + open
1 Animation wheel

Effects
Motorized focus

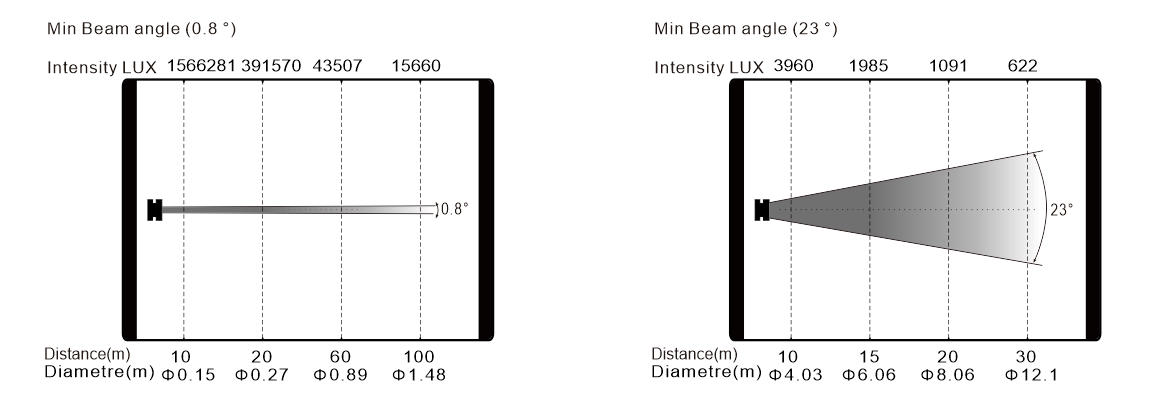

Zoom range: 0.8°-23°
Auto focus
2 rotating prism wheels: total 8 prisms.  The 1st prism wheel: 6 facet + 8 facet + 4 linear + 6 linear. The 2nd prism wheel: 6 facet + 16 facet + 4 linear + 6 linear.  Each two prisms can be overlaid to produce various beam effects and kaleidoscope effect.
Light frost, heavy frost
Dimming: 0-100% linear dimming
Strobe: electronic with various speed

Protection rating
IP66

Display
Battery operated for fast addressing,15 seconds standby auto lock
Pan/ Tilt disengage (hold LEFT and RIGHT button)

Software
Upgrade with DMX
Remote reset DMX address, fixture reset by DMX
Run time of light source and fixture
2 Control channel modes: 28/41CH
Auto thermal protection circuit

Control
Input signal isolation
Art-Net control: optional
RDM protocol: optional
Internet of Things function: optional

Electric parameter
AC200-240V, 50/60Hz
Power: 800W

Dimension and weight

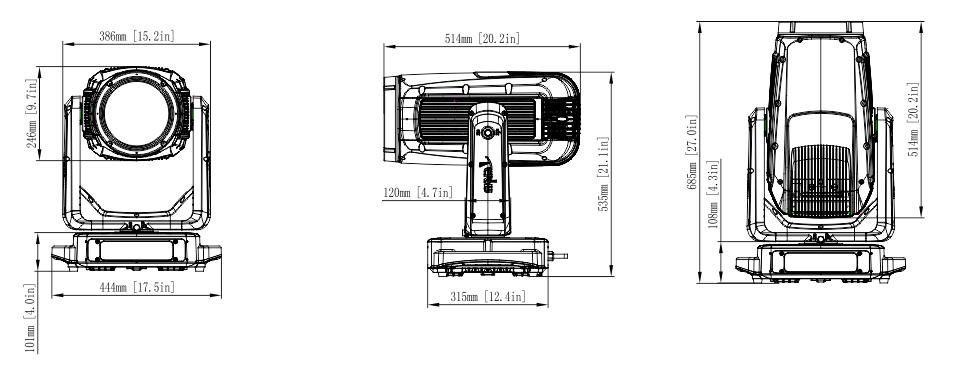

Product dimension: 315x444x685mm
Net weight: 33 kg

*Testing conditions in the lab may differ based on various factors.
