SL880P IP

  • Specification
Optical system
Source: 750W white LED
Fixture CT: 6500K
"Light source life expectancy:20000 hrs Average Light Source Life*
*Testing conditions in the lab may differ based on various factors."
CRI: Ra≥70 (Optional Ra90)
Fixture output: 25500lm

Movement
Pan:540° (16 bit)
Tilt: 270° (16 bit)
Auto pan/tilt repositioning

Color system
CMY+CTO color mixing
1 Color wheel: 7 dichroic filters+open

Gobo system
1 Rotating gobo wheel: 7  interchangeable gobos+ open
1 Static gobo wheel: 9 gobos + open
1 Animation wheel

Effects
Motorized focus
Zoom range:3.5°-53°
Auto focus
2 Rotating prisms: 4-facet liner prism + 5-facet circular prism, used only or overlap, indexable, rotating in both directions
Frost: light, heavy, light+heavy
4 individually positionable blades with ±90°rotation of the complete framing system
Iris:5%-100% open
Dimming:0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse
GAMMA: 2.0, 2.2, 2.4, 2.6, 2.8, to fit different camera's linearity
Refresh rate: 1200Hz,optional S curve (25KHz) and square curve (25KHz)

Protection rating
IP66

Display
LCD Display
Pan/tilt disengage (hold Left and Right buttons), support to complete the reset detection in the flight case

Software
Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source
2 Control channel modes: 40/62CH
Auto thermal protection

Control
Input signal isolation
RDM protocol

Electric parameter
AC200-240V, 50/60Hz
Power consumption: 950W

Dimension and weight
Product dimension: 395x270x702mm
Packing dimension (carton): 815x500x405mm
Net weight:30 kg
Gross weight(carton):35 kg

Errors and omissions are possible.  All specifications are subject for change without prior notice.

  • Dimensions

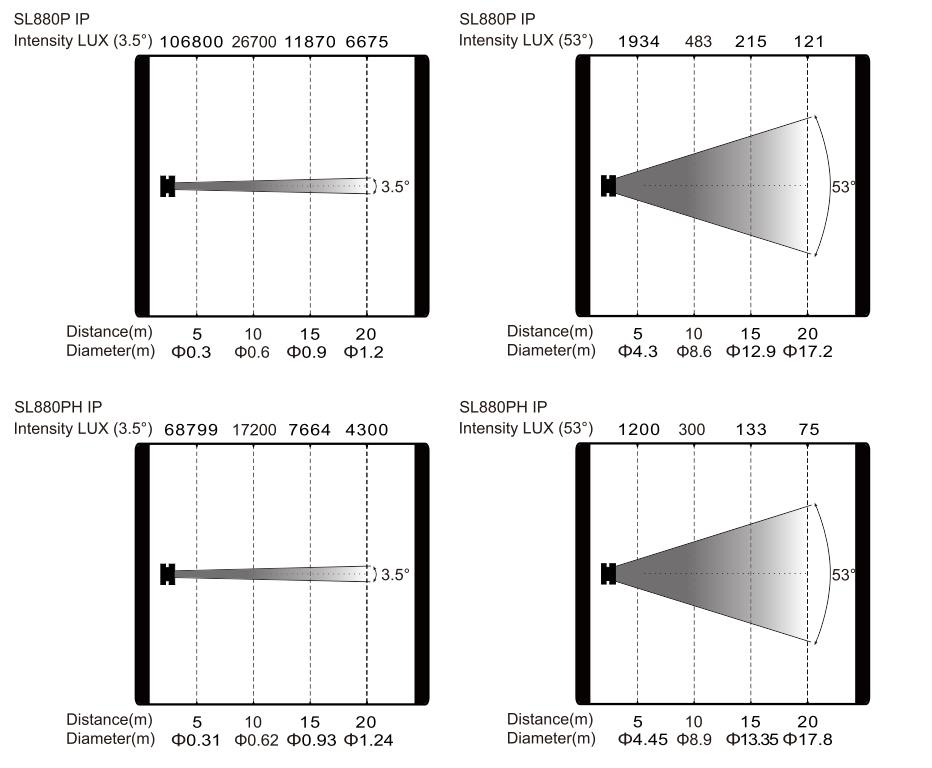

  • Photometrics
