T90H IP(CW/WW)
- Specification
Optical system
Source: 160W LED
Fixture CT: 5600K(CW), 3000K(WW)
Light source life expectancy：100,000 hours Average Light Source Life*
CRI: ≥95 (CW, WW)
Fixture Output: 13,000lm(CW), 11,500lm(WW)
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz
Gamma: 2.0,2.2,2.4,2.6,2.8,to fit different visual linearity requirements
Upgrade with DMX
3 Control channel modes: 3/6/8CH
Gamma: 2.0,2.2,2.4,2.6,2.8, to fit for different cameras
AC100-240V, 50/60Hz
Product dimension: 300x439x698mm
Packing dimension (carton): 640x395x425mm
Net weight: 8 kg
Flicker free
DMX connection: 5 pin in/out
Housing: Die-casting
*Testing conditions in the lab may differ based on various factors.
Source: 160W LED
Fixture CT: 5600K(CW), 3000K(WW)
Light source life expectancy：100,000 hours Average Light Source Life*
CRI: ≥95 (CW, WW)
Fixture Output: 13,000lm(CW), 11,500lm(WW)
Optical angle: 26°(19°/36°/50°optional)
Rotating gobo wheel: support "B" size metal, HT transparency gobos. Holder optional. Gobo OD: 86mm
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz
Gamma: 2.0,2.2,2.4,2.6,2.8,to fit different visual linearity requirements
Refresh rate: 900-1, 500Hz, 25000Hz
IP65
Upgrade with DMX
3 Control channel modes: 3/6/8CH
Gamma: 2.0,2.2,2.4,2.6,2.8, to fit for different cameras
Refresh rate: 900-1, 500Hz, 25000Hz
RDM protocol
AC100-240V, 50/60Hz
Power: 170W
Product dimension: 300x439x698mm
Packing dimension (carton): 640x395x425mm
Net weight: 8 kg
Gross weight (carton): 13 kg
Flicker free
DMX connection: 5 pin in/out
Housing: Die-casting
*Testing conditions in the lab may differ based on various factors.
Errors and omissions are possible. All specifications are subject for change without prior notice.
- Dimensions
- Photometrics

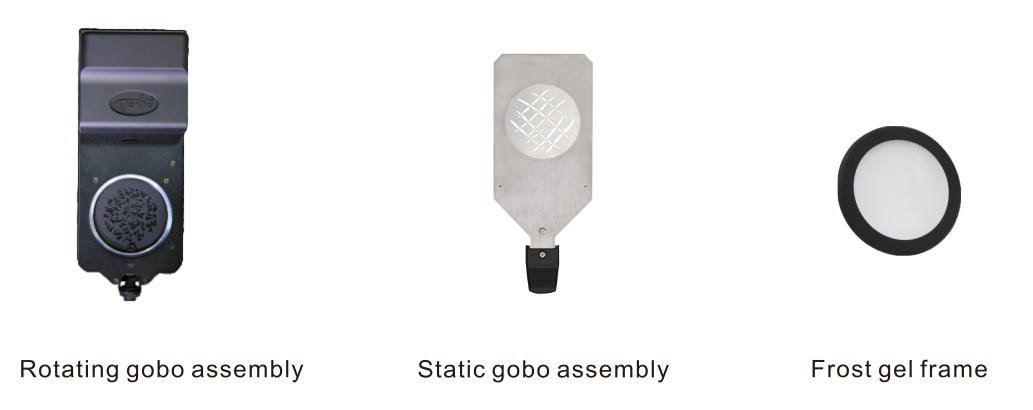

- Accessories
- Related materials and tools to download
-
Library T90H-CW IP(grandMA2) RAR 0.01MB T90H-CW IP 26Deg(grandMA3 GDTF) RAR 0.51MB T90H-CW IP(Avolites D4) RAR 0.04MB T90H-WW IP 26Deg(grandMA3 GDTF) RAR 0.5MB T90H-WW IP(Avolites D4) RAR 0.04MB T90H-WW IP(grandMA2) RAR 0.01MB
-
CAD Drawing T90H IP_CAD Symbol 3D.DWG 3D FILE DWG 0.72MB
