  • Specification

Optical system
Source: 5 x 15W RGBW LED
Life span:>50,000h
Fixture output: 2,100lm

Color system
RGBW color mixing

Zoom: 7°(beam angle),18°(field angle)
Dimming: 0-100% linear dimming
Strobe: electronic, variable from 1-25Hz or pulse

Protection rating

Battery operated for fast addressing,15 seconds standby auto lock

Upgrade with DMX
Remote reset DMX address and fixture by DMX
Run time of fixture and light source

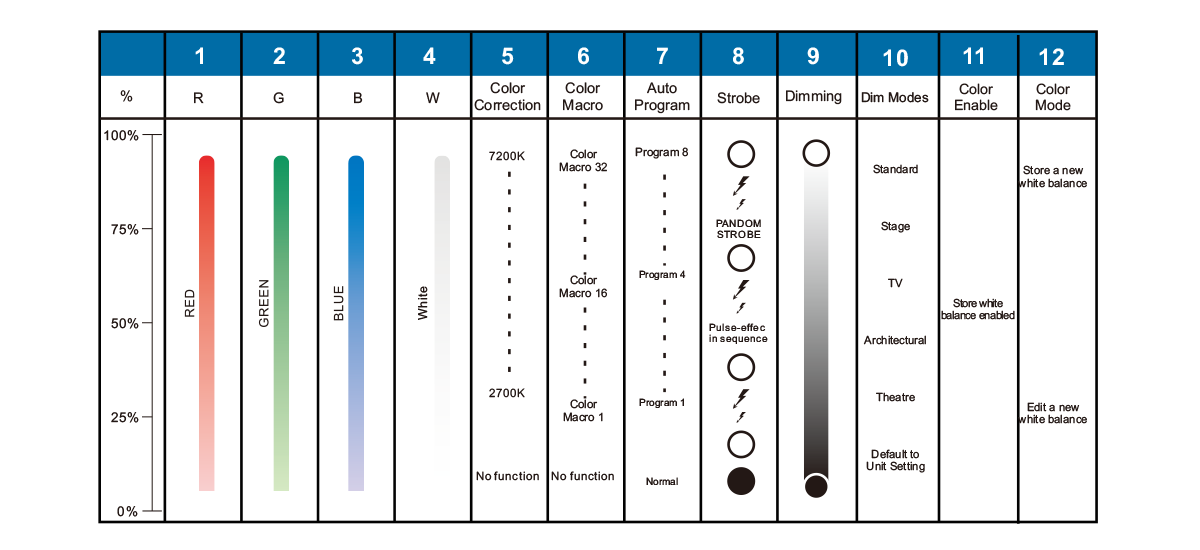

4 Control channel modes: 4/5/11/12CH

Input signal isolation
Installed wireless receiver
RDM compatible

Electric parameter
AC100-240V, 50/60Hz
Power: 70W
Power supply: battery or DC mains
Battery usage time: 7 hrs (at full power), 19 hrs (when color changing)
Battery charge time: 8 hrs (when connected to mains)
Replaceable battery

Dimension and weight
Product dimension: 29.0x25.1x28.8cm
Packing dimension (carton): 39.0x36.5x38.5cm
Net weight: 6.8kgs
Gross weight (carton): 11.0kgs

Flight case: with charging status windows and 6 charging bases. Operating temperature: -10°C to 45°C. Flight case net weight: 40.2kgs
Optional six in one flight case with charger base
Aluminum die-cast housing

  • Dimensions
  • Photometrics
  • Accessories

  • Related materials and tools to download
  • Library
    BPAR5QB-R(Avolites D4) RAR 0.01MB
    BPAR5QB-R(Avolites R20) RAR 0.01MB
    BPAR5QB-R(grandMA1) RAR 0.01MB
    BPAR5QB-R(grandMA2) RAR 0.01MB
    BPAR5QB-R(grandMA3 GDTF) RAR 0.3MB
  • CAD Drawing
    BPAR5QB-R_CAD Symbol 3D.DWG 3D FILE DWG 0.69MB
    BPAR5QB-R_Dimensional Drawings.dwg 2D file DWG 0.52MB
